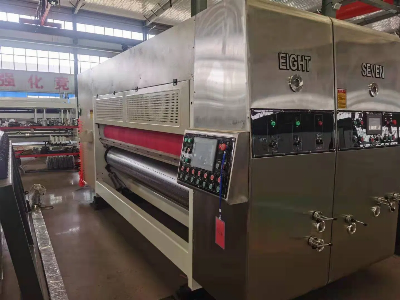

High Speed Flexo Printing Slotting and Die Cutting Machine for Paperboard

This machine is equipped with general control system can be individually control:Main motor,blower start,stop phase adjust,feeding start and stop,etc functions.Convenient for users and obviously save adjusting time and other characteristics.Main technique parameter Model:GYM-2400-4-A ModelMachine wall to wall width:2800mmDesign speed:260 sheet/min    Maximum working speed:220sheet.min(determined by printing plate and ink)Max.Paper size:2400mm×900mmMin. Paper size:290mm×650mmMin. Slotting size positive knife:280*80*280*80(mm)Skip Feeding size:2150mm×1100mmMax. Printing area:2000mm×900mm(including plate)Standard printing plate thickness:4-7.2mmPrinting precision:    ≤±0.5mm/unitMaximum die cutting area:2200mm×900mmMain motor power(kw):30(4 colors)Machine total power(kw):≈50  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
