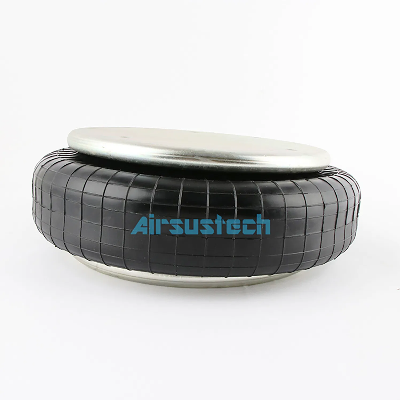

Airsustech Single Air Bag Goodyear 1b14-350/578913351 Convoluted Air Spring Replacement

AIRSUSTECH Single Air Bag Goodyear 1B14-350/578913351 Convoluted Air Spring Replacement  Refer No. Fire-stone Style 113Fire-stone. W01-358-7103Fire-stone. W01 358 7103Fire-stone. W013587103Fire-stone. WO1-358-7103Fire-stone. WO1 358 7103Fire-stone. WO13587103FleetPride AS7103Goodyear 1B14 350Goodyear 1B14-350Goodyear 1B14350Goodyear Flex No. 578913351Taurus 6326Triangle AS-4442Triangle AS 4442Triangle AS4442TRP AS71030Peerless 0550 00015&Peerless 0550-00015&Peerless 055000015&  Specifications and Detailed Technical Parameters:AIRSUSTECH 1B53014 Nut/blind nutTop plate screw (nut) teeth: 4X3/8-16UNCThe screw center distance of the top cover plate: 158.8mmScrew (nut) teeth of the bottom cover plate: 4X3/8-16UNCThe screw center distance of the bottom cover plate: 158.8 mmAir hole/air inlet/air fittingsAir hole/air inlet: 1/4NPTFCover plateTop plate diameter: 289 mmDiameter of the bottom cover: 289 mmBell rubber bellowsMaximum diameter of rubber bellows: 406 mmNatural diameter of rubber bellows: 350 mmWorking stroke: minimum 81 mm to maximum 160 mmMaximum height: 160 mmMinimum height: 81 mmBumper block/bumper blockNo bumper blockBelt loop/Belt loop/Girdle hoop/Girdle HoopWithout belt loop/girdle hoop  Min. pressure: 0 barReturn force to min.height: ≤300NOverall weight with clamped plates: 6.1kg Vibration isolation - dynamic characteristic valuesDesign Height H: recommended 150mm, minimum 120mmPressure p[bar]345678Vol. V[l]Force(Load) [KN]18.624.931.537.944.450.811.0Spring rate [N/cm]365044105340614072207920Natural frequency [Hz]2.22.12.12.02.02.0 Pneumatic application-static characteristic valuesForce F[KN]Pressure p [bar]345678Vol. V [l]Height H[mm]16017.123.029.035.041.247.311.814020.026.833.740.647.754.510.712022.329.837.344.952.760.29.510024.131.940.048.156.364.38.28025.333.441.950.358.867.16.66026.034.543.452.060.869.14.6  The related picture of 1B53014Company ProfileGuangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.Factory workshopFAQQ1:Can you produce the product according to the samples?A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.Q2: What is your sample policy?A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.Q3: What certification does your product pass?A: Our products are certified to ISO/TS16949:2009 international quality standards. Please rest assure that we have very strict Quality Control Systems.Q4 : Can I use my own logo?A:Sure. We can do as per the customer's requirements.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
