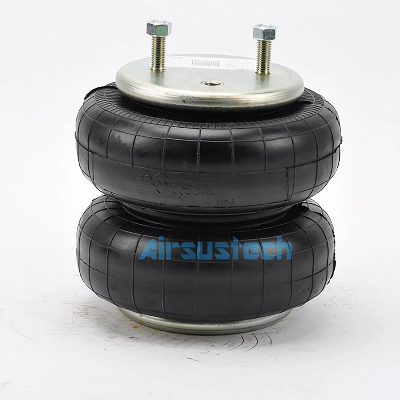

Ridewell 1003586943C Double Convoluted Rubber Air Spring Cross Reference Cross OEM NO. Fire-stone W01-358-6943Fire-stone W01 358 6943Fire-stone W013586943Contitech FD200 25 426Contitech FD 200-25 426Contitech FD200 25 426Contitech 161332Goodyear 2B9-250Goodyear 2B9 250Goodyear 578923206Triangle 6332Watson&Chalin AS-0041Neway/SAF 90557237Ridewell 1003586943CTuthill 6352V-Steer II (Lift Bag)Van Raden 2B6943 Specifications and Tecnical Data Nut/blind nutTop plate screw (nut) teeth2 x 1/2-13UNCThe screw center distance of the top cover plate89 mmScrew (nut) teeth of the bottom cover plate2 x 3/8-16UNCScrew center distance of bottom cover plate89mmAir hole/air inlet/air fittingAir hole/air inlet1/4NPTCenter distance between air inlet and nut44.5 mmcoverTop plate diameter (width)160 mmDiameter of bottom cover (width)160 mmMaximum height325mmMinimum height79mmWorking strokeminimum79 mm to maximum 325 mmothersBumper block/bumper blockNo bumperBelt loop/Belt loopone piece Min. pressure: 0 barReturn force to min.height: ≤250NOverall weight with clamped plates: 3.5kg Vibration isolation - dynamic characteristic valuesDesign Height H: recommended 254mm, minimum 230mmPressure p[bar]345678Vol. V[l]Force(Load) [KN]6.08.110.212.314.416.58.6Spring rate [N/cm]7309301200139016601840Natural frequency [Hz]1.81.81.71.71.71.7 Pneumatic application-static characteristic valuesForce F[KN]Pressure p [bar]345678Vol. V [l]Height H[mm]2904.15.67.39.010.512.49.42605.67.39.411.313.415.48.92306.68.811.113.415.818.18.42007.59.912.515.017.620.27.71708.311.013.816.619.422.27.01408.911.814.817.720.723.66.11109.312.315.618.721.924.65.1 Other Types Of Ridewell Air Spring Replacement 1003587009C 1003587400C 1003586897C 1003587403C 1003586900C 1003587404C 1003586902C 1003587406C 1003586905C 1003587410C 1003586908C 1003587180C 1003586910C 1003587424C 1003586932C 1003587429C 1003586905C 1003587437C 1003587893C 1003587781C 1003587325C 1003587325C 1003586945C 1003587437C 1003586946C 1003588008C 1003586948C 1003588010C 1003587136C 1003588016C 1003587180C 1003588030C 1003587181C 1003587808C 1003587183C The image 2B6943 Air Spring Company ProfileGuangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.Factory workshopFAQQ1:Can you produce the product according to the samples?A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.Q2: What is your sample policy?A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.Q3: What certification does your product pass?A: Our products are certified to ISO/TS16949:2009 international quality standards. Please rest assure that we have very strict Quality Control Systems.Q4 : Can I use my own logo?A:Sure. We can do as per the customer's requirements. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
