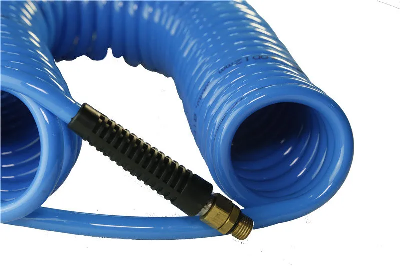

95 Shore a Pneumatic Spiral Hose with Fitting (150P. S. I.)

Product Description For TPU COIL WATER TUBE TPU Characteristic: 1. Having excellent flexibility, the bevelling radius is small. 2. Good anti-knocking property and the nature is light. 3. The operating temperature and the working pressure scope is wide. 4. Having the excellent chemical properties,the pressu loss is minimum. 5. Degree of hardness is constant,the sercice life is long. 6. Non-toxic,tasteless. 7. Custom-made  color  is doable,easy pipeline  recognition. 8. Confirm to the ROHS/REACH/CE environmental protection requirement. Specifications: Material:Polyurethane Fluid:air,water, oil Operating Temperature: -40ºC+80ºC (For Non-Chemical GAS Space) Tube O.D.:1mm to 19mm Tube O.D:2.5mm to 21mm Diameter Tolerances ±0.1mm~±0.15mm Shore: hardness 65A---98A Tensile Strength: 400kgf/cm² (5690 PSI) Elongation at Break 490-590% Abrasion 35mg Tearing Strengh 1565 PSI(110kg/cm2) Safety Factor--3:1 PU MATERIAL PROPERTY: Manufactured 100% higher pure polyurethane raw materials, make products to guarantee with PU material characteristic of flexibility, non-toxic, harmless to the human body. Having excellent flexibility, high pressure resistance, resistance to wear and tear, resistant to twists and turns, a high elastic recovery memory effect, being 100% incineration ash, being approved by the environmental protection product. Pneumatic TPU Tube  Size : note:the following size is just for you refer , unstandard size is custom-made .   ITEM NO.INSIDE DIAMETEROUTSIDE DIAMETERLENGTHWORKING PRESSUREBURST PRESSUREWORKIN TEMPERATUREPS0850-065.0MM8.0MM6M120P.S.I.360P.S.I.-40±80ºCPS0850-095.0MM8.0MM9M120P.S.I.360P.S.I.-40±80ºCPS0805-125.0MM8.0MM12M120P.S.I.360P.S.I.-40±80ºCPS0805-155.0MM8.0MM15M120P.S.I.360P.S.I.-40±80ºCPS1065-066.5mm10.0mm6M120P.S.I.360P.S.I.-40±80ºCPS1065-096.5mm10.0mm9M120P.S.I.360P.S.I.-40±80ºCPS1065-126.5mm10.0mm12M120P.S.I.360P.S.I.-40±80ºCPS1065-156.5mm10.0mm15M120P.S.I.360P.S.I.-40±80ºCPS1280-068.0MM12.0mm6M120P.S.I.360P.S.I.-40±80ºCPS1280-098.0MM12.0mm9M120P.S.I.360P.S.I.-40±80ºCPS1280-128.0MM12.0mm12M120P.S.I.360P.S.I.-40±80ºCPS1280-158.0MM12.0mm15M120P.S.I.360P.S.I.-40±80ºC/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
