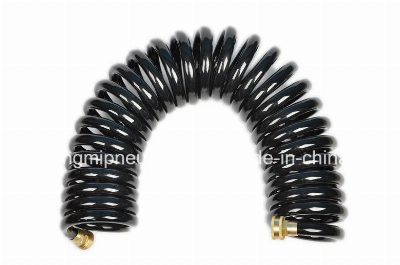

9*13mm TPU Recoil Water Hose, Garden Coil Tube (100%polyurethane)

Product Description For TPU COIL WATER TUBETPU Characteristic:1. Having excellent flexibility, the bevelling radius is small.2. Good anti-knocking property and the nature is light.3. The operating temperature and the working pressure scope is wide.4. Having the excellent chemical properties,the pressu loss is minimum.5. Degree of hardness is constant,the sercice life is long.6. Non-toxic,tasteless.7. Custom-made  color  is doable,easy pipeline  recognition.8. Confirm to the ROHS/REACH/CE environmental protection requirement. A. 9.52*12.7mm TPU Garden Coiled Hose 1) PU coiled garden hose(new) - 10meters(BP:22bar at 20degree)Overall coillng length:510--520mmCoilling number:36--37Coilling outer dia:95--97mmCoilling Inner dia:75-78mm3/8" ID (inside diameter) - 9.52mm1/2" OD (outside diameter)  - 12.70mmBurst pressure: min 22bar  at 20ºCPrice:$3.36 per piece without fittings(10meters)2) 9.52*12.7mm--15meters(BP:22bar at 20degree)Overall coillng length:770--780mmCoilling number:54--55Coilling outer dia:95--97mmCoilling Inner dia:75-78mmPrice:$5.04 per piece without fittings(10meters)B. 9.0*13mm TPU Garden Coiled Hose 9*13mm coiled garden  hose1)9.0*13.0mm black coil hoseRaw materials:PU 100% Grade 1Tightly coiled coiled length about 0.35-0.40m -> Extended with reasonably strong pulling force to about 10mAll materials used for the production of the hose comply with reach regulationsworking pressure: 10 barBurst pressure: min 28bar(at 20ºCResistance to UV exposureExternal diameter of the spiral:Coilling outer dia:97--101mm Coilling Inner dia:75-78mm Number of coil number:32--33Price:$4.19 without fittings2)9*13mm--15meters(BP:28bar at 20degree)Overall coillng length:750--760mmCoilling number:53--54Coilling outer dia:97--101mmCoilling Inner dia:75-78mm Price:$6.28 without fittingsSpecifications:Material:PolyurethaneFluid:air,water, oil Operating Temperature: -40ºC+80ºC (For Non-Chemical GAS Space) Tube O.D.:1mm to 19mm     Tube O.D:2.5mm to 21mm    Diameter Tolerances ±0.1mm~±0.15mmShore: hardness 65A---98ATensile Strength: 400kgf/cm² (5690 PSI)Elongation at Break 490-590%Abrasion 35mgTearing Strengh 1565 PSI(110kg/cm2)Safety Factor--3:1  PU MATERIAL PROPERTY: Manufactured 100% higher pure polyurethane raw materials, make products to guarantee with PU material characteristic of flexibility, non-toxic, harmless to the human body. Having excellent flexibility, high pressure resistance, resistance to wear and tear, resistant to twists and turns, a high elastic recovery memory effect, being 100% incineration ash, being approved by the environmental protection product.INNER PACKING:One type packing:wood reel, can roll Another type packing:plastic reel,gift box.OUTER PACKING:cartonLENGTH:100M/ROLL,200M/ROLL,300M/ROLL,500M/ROLL,1000M/ROLL.Pneumatic TPU Tube  Size :note:the following size is just for you refer , unstandard size is custom-made .   ITEM NO.INSIDE DIAMETEROUTSIDE DIAMETERLENGTHWORKING PRESSUREBURST PRESSUREWORKIN TEMPERATUREPS0850-065.0MM8.0MM6M120P.S.I.360P.S.I.-40±80ºCPS0850-095.0MM8.0MM9M120P.S.I.360P.S.I.-40±80ºCPS0805-125.0MM8.0MM12M120P.S.I.360P.S.I.-40±80ºCPS0805-155.0MM8.0MM15M120P.S.I.360P.S.I.-40±80ºCPS1065-066.5mm10.0mm6M120P.S.I.360P.S.I.-40±80ºCPS1065-096.5mm10.0mm9M120P.S.I.360P.S.I.-40±80ºCPS1065-126.5mm10.0mm12M120P.S.I.360P.S.I.-40±80ºCPS1065-156.5mm10.0mm15M120P.S.I.360P.S.I.-40±80ºCPS1280-068.0MM12.0mm6M120P.S.I.360P.S.I.-40±80ºCPS1280-098.0MM12.0mm9M120P.S.I.360P.S.I.-40±80ºCPS1280-128.0MM12.0mm12M120P.S.I.360P.S.I.-40±80ºCPS1280-158.0MM12.0mm15M120P.S.I.360P.S.I.-40±80ºC/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
