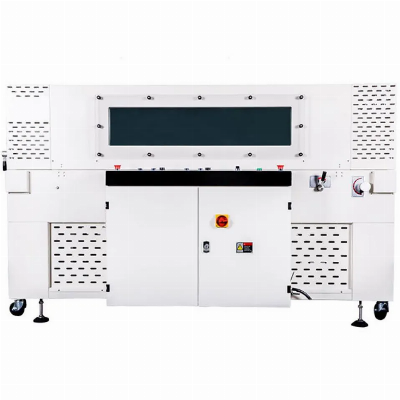

Turbine Heat Circulation Shrink Tunnel T-61

Product DescriptionT-Series Turbine Heat Circulation Shrink TunnelCost Saving and Environmental Protection Heat Shrink Tunnel. Earth Conservation with Spending Less Money.T-Series shrink tunnel produces consistent uniform film shrink using heavy-duty, variable speed blowers and heating elements. This combination creates a recirculating air system that forces air to all package surfaces. Independent control systems regulate temperature, air velocity and conveyor speeds. The efficient heating system on each machine reduces the amount of electricity and the cost of operation.Features• Turbine heat circulation system design with great reduce heating time. • Lower heat lost than traditional shrink tunnel. • Diminish the use of electricity. • Independent control systems regulate temperature, air velocity, flow directions and conveyor speeds. • The lateral air flow and bottom air flow strength can be manipulated. • Different conveyor systems are available (live roller, stainless steel, modular plastic or Teflon mesh).SpecificationModelT-61T-62T-63Machine SzieLxWxH(mm)1450×895×10801700×940×11602200×1100×1230Chamber SizeLxWxH(mm)1100×300×2001200×350×2801700×440×350Maximum Packing SizeWxH(mm)280×150(W×H)300×230(W×H)400×300(W×H)Power380V, 3P, 10.5Kw380V, 3P, 14.5Kw380V, 3P, 19KwOperating Power Consumption(V)5Conveyor Speed(m/min)0~30ModelT-64T-65T-66Machine SzieLxWxH(mm)2200×1142×12302200×1300×12302400×1660×1160Chamber SizeLxWxH(mm)1700×540×3501700×700×3501900×1200×280Maximum Packing Size WxH(mm)500×300(W×H)650×300(W×H)1050×230(W×H)Power380V, 3P, 21Kw380V, 3P, 24Kw380V, 3P, 28KwOperating Power Consumption(V)5Conveyor Speed (m/min)0~30Nanjing Jinhuigu Industrial    /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
