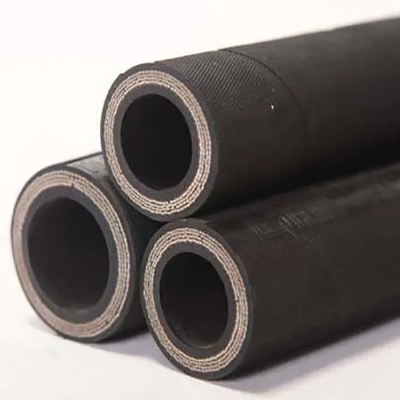

DIN EN856 4SP high pressure multispiral hydraulic hose for petroleumRecommended For: very high pressure applications used for petroleum based hydraulic fluids Namehigh pressure multispiral hydraulic hoseStandardDIN EN856 4SPTubeBlack, oil resistant, synthetic rubberReinforcementfour alternating layers of spiraled high-tensile steel wire CoverBlack, oilproof, Anti-abrasion&weather resistant, synthetic rubber.Working Temperature-40ºF to +212ºF (-40ºC to +100ºC) Applicationvery high pressure applications used for petroleum based hydraulic fluids Color availableblack, grey, blue, yellow, red, etcSurfacesmooth & cloth Construction:The hose is composed of an inner tube of oil resistant synthetic rubber, 4 layers of spiral wire reinforcement, and an oil and weather resistant synthetic rubber cover. The internal rubber bears the pressure of delivery medium in order to protect the steel wire from corrupting while the enforced wire-wood layer increases the firmness of the hose.Advantages:1.Selection of synthetic rubber hose with special made, with excellent oil resistance, heat resistance, anti-aging properties. 2. Hose for the high-pressure and superior pulse properties. 3. Hose combination of close, use soft, small deformation under pressure. 4. Hose has an excellent circumnutate resistance and fatigue resistance.Specification:Hose IDHose O.D.Working PressureMin. Burst PressureMin. Bend RadiusWeight(In.)(mm)(In.)(mm)(psi)(MPa)(psi)(MPa)(In.)(mm)kg/mlb/ft 3/89.50.8321.1645544.5258201784.3109.20.780.524 1/212.70.9624.4601841.5240721664.7119.40.930.625 5/815.91.0927.7507535203001405.5139.71.170.786 3/4191.2431.5507535203001406.7170.21.480.995125.41.5439.14060281624011213.4340.42.021.3571 1/431.81.9649.8304521121808418.1459.73.052.051 1/238.12.2557.2268518.51073074225603.522.365250.82.7569.8239516.5958066266605.23.494Certifications:Application:It is mainly used for Mine hydraulic support ,oilfield exploitation ,object construction ,lifting transport ,metallurgic forging ,mine equipment, ship, injection molding machinery, agricultural machinery , all kinds of machine tools and various industrial sectors mechanization and automation in the hydraulic system of conveying with a certain pressure(high pressure) and the temperature of the oil-based(such as mineral oil, soluble oil, hydraulic oil, fuel oil and lubricants) and water-based liquid (such as Emulsion, the oil-water emulsion, water) and liquid transmission used.Related Product:Our main product is 1 layer, 2 layers braid; 4layers, 6layers steel wire spiral hydraulic hose SAE Standard: R1AT,R2AT,1A,R2A,R1,R2,R3,R4,R5,R6,R7,R8,R9,R10,R12,R13,R14,R15,R16,R17,R19.Contact Us:QINGDAO EASTOP PLASTIC PRODUCT CO., LTDAddress: 2223 Building C, VANKE Center, Fuzhou Road, Qingdao, Shandong, China (Mainland)Tel: +86-532-83860726 /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
