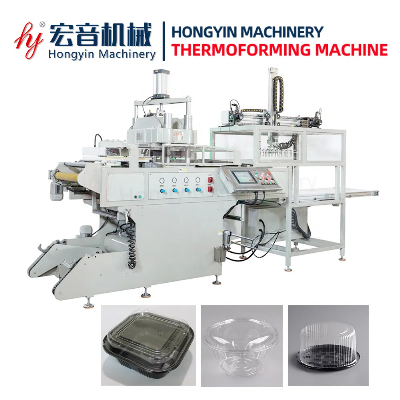

Automatic Plastic Dome Cake Display Container with Clear Dome Lid Making Machine

HY-51/62 Automatic Plastic Dome Cake Display Container with Clear Dome Lid making machine General Process Product Description HY-51/62 plastic thermoforming machine is a combination of mechanical, electrical, and pneumatic components, and the whole system was controlled by a micro PLC, which can be operated in a man-interface. It combines the material sending, heating, forming, cutting, and stacking counting into one process. It has three operation models. " manual", " semi-automatic" and "automatic, so it is a new generation ideal package equipment telecommuting and memory reserve functions.Samples for Reference Machine Details Product Parameters The parameters of thermoforming machine:1. Forming area: 510×620mm2. Forming depth: 100mm3. Sheet thickness range: 0.1-1mm4. Sheet roller diameter: 710mm5. Cutting length: 6350mm6. Ari pressure: 0.7Mpa7. Water consumption: Liters/min(15-20ºC)8. Air consumption: 1200 Liters/min9. Speed:600-1500 Liters/min10. Power:3-N AC380V ±10%11. Preheater power 2kw12. Mould plate heating power: 4.8kw13. Heating plate power: 18kw14. Sheet width: 650mm 15. Weight 2500kg16. Dimension(L×W×H)2750×1410×2350×(mm)The parameters of stacker:1. Stacking area: 510×620mm 2. Suitable depth: 100mm 3. Air consumption: 200 Liters/min4. Power: 1.8kw5.Weight: 300kg6. Dimensions (L ×W×H): 2530×2500×2100 mmDetailed PhotosFeeding PartThe feeding part of the machine is integrated with the machine, which makes the feeding process more stable and can bear larger material roll. The left and right of the feeding frame are respectively controlled by a cylinder to ensure the stability of feeding process.Pre-heating PartHeating with electric heating rod can directly heat the sheet, improve the working speed of the machine and enhance the transparency of the sheet. The surface of the new preheating version is treated with coating, which is not easy to scratch the material.Heating - Forming - Cutting PartThe machine could finish plastic sheet's heating, in-mould forming, cutting and stacking in one process. The direct contact heating, forming and cutting method makes the final products good shaping and accurate cut. Cutting is a way of sharing blades, it makes material utilization rate high. Servo motor control make the machine with low power consumption and easy maintenance.Stacking PartAfter products finished, they are grasped and stacked by the manipulator automatically.The guide rail for stacking is imported from Japan and controlled by servo motor to ensure the stability of grabbing and stacking.Machine & Mould ManufacturingWe have a complete production line and professional engineers, combined with advanced technology and mature experience, to produce high-quality machines.Packaging & ShippingOur standard packing method for machine is film wrapping.Wooden case packing can be provided according to customer's requirements.About Ruian Hongyin Machinery Co., Ltd Services: 1. Purchase Service:Wenzhou Hongyin Company has a specialized and efficient working team. If you are new to the printing and packing area, Some samples of your products that could be shown to us will be appreciated, we will give you a specialized suggestion of whole work. 2. Installation Service: We could assign 1 technician to coordinate installation, commissioning, and training, the cost for the return flight and suitable accommodation will be charged, and the allowance is USD 100-150 per day. 3. Warranty Service: 12 months limited warranty. Starting from the date of machine arrival buyer's place excluding wear parts. Shipping costs for easy broken parts to be replaced during the warranty period have to be borne by the customer. If you are interested in our machine, please feel free and contact me. Ms. Lynn/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
