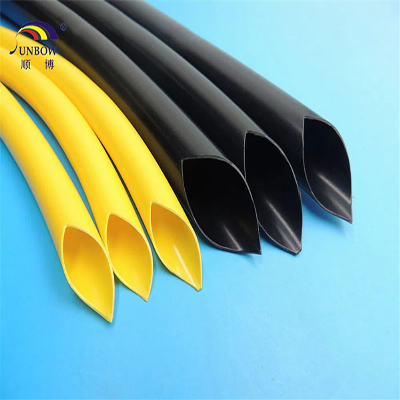

Electrical Wiring Insulating Tube PVC Tube PVC Hose

Electrical Wiring Insulating TUBE PVC tube PVC Hose   Product DescriptionModel number:SB-PVCWorking temperature: -30ºC~+105ºCStructurePVC tubing is produced by superior and environmentally friendly polyvinyl colloidal particle, after drying, extruded to tubing when heated up and liquated, then packing in rolls after cooling.UsageWith the excellent flexibility, mechanical and dielectric capability, flame resistance performance, PVC tubing is widely used in outside insulation protection of outgoing wires of electrical appliances, transformers, electrical motors or lighting equipment, and electronic components, wire harness and etc.   SpecificationSpecificationItemUnit         Test  MethodNumerical ValueSB-300SB-600Voltage ratingV 300600Temperature ratingºCUL224105Voltage resistanceBefore aging UL224  23ºC2500V/60secAfter agingUL224  136ºC 168hr2500V/60secVolume resistivityΩcmUL224≥1010Tensile strengthBefore agingMpaUL224  23ºC≥10.4After agingMpaUL224  136ºC 168hr≥7.3 Elongation Before aging%UL224  23ºC≥100%After aging%UL224  136ºC 168hr≥100%Flexibility UL224  136ºC 168hrNo crackingHeat shock UL224  180ºC 4hrNo crackingCold bend UL224 30ºC 1hrNo crackingCopper stability UL224  136ºC 168hrNo corrosionFlame resistance UL224VW-1Special instruction: The PVC tubing supplied for the customers should be based upon the samples which confirmed by both sides, not restricted by the above performance index. Electrical Wiring Insulating TUBE PVC tube PVC Hose Electrical Wiring Insulating TUBE PVC tube PVC Hose Electrical Wiring Insulating TUBE PVC tube PVC Hose Dimension(One)The British system series of AWG AWG No.   Inner Diameter(mm)  Wall Thickness (mm) Package size(m/r) SB-300SB-600240.55±0.10.25±0.050.40±0.05305220.65±0.10.25±0.050.40±0.05305200.85±0.10.25±0.050.40±0.05305190.9±0.10.30±0.050.40±0.05305181.0±0.150.30±0.050.45±0.05305171.2±0.150.30±0.050.45±0.05305161.3±0.150.30±0.050.45±0.05305151.5±0.150.30±0.050.45±0.05305141.7±0.150.30±0.050.45±0.05305131.9±0.20.30±0.050.45±0.05305122.1±0.20.35±0.050.50±0.05305112.4±0.20.35±0.050.50±0.05305102.7±0.20.35±0.050.50±0.0530593.0±0.20.40±0.050.50±0.0530583.3±0.20.40±0.050.50±0.0530573.7±0.20.40±0.050.50±0.0530564.2±0.30.45±0.050.50±0.0530554.7±0.30.45±0.050.55±0.0530545.3±0.30.45±0.050.55±0.0530535.9±0.30.45±0.050.55±0.0530526.6±0.30.45±0.050.55±0.0515217.4±0.350.45±0.050.55±0.5515208.3±0.350.45±0.050.55±0.55152(Two)  The British system series Size (inch)Inner Diameter(mm)Wall thickness(mm) Packing size (m/r)SB-300 SB-6005/168.0±0.350.45±0.050.55±0.051523/89.5±0.350.50±0.050.55±0.051527/1611.1±0.350.55±0.100.65±0.101521/212.7±0.350.55±0.100.65±0.101529/1614.3±0.40.65±0.100.75±0.10765/816.0±0.40.65±0.100.75±0.10763/419.0±0.40.65±0.100.75±0.10767/822.0±0.50.75±0.150.85±0.1576125.0±0.50.75±0.150.85±0.1576027.0±0.80.75±0.150.85±0.1576Remark: Other size and color can be produced upon request.Color:  Transparent, black, white, red, yellow, brown, grey, etcOur companyElectrical Wiring Insulating TUBE PVC tube PVC HoseWe SUNBOW is a professional insulation tubing OEM manufacturer in China. Our clients can be found everywhere such as Toshiba, SAMSUNG, Philips---About Sunbow1) 10-year exporting experience2) 15-year manufacturing experience3) ISO 9001:2008 and TS16949 quality management system certification4) product certifications: UL, REACH, RoHS5) business partners:Sanyo, Panasonic & Tiger, SEB, Philips, Black & Decker, Emerson & Conair, HOT,  and MideaCertifications   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
