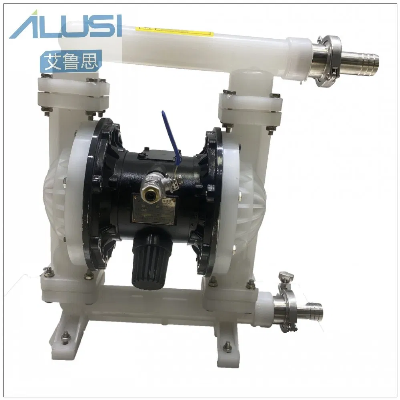

Chemical Liquid Cosmetic Lotion Paste Transfer Pump

PIntroduction:1. This pump is special designed for molasses, cooking oil, paste, milk, fruit, etc.  2. The dependable rust protection and the non-toxic sealing of the pump ensure the safety and the sanitary standard.3. Apply to the transfer of the mediums that are easy-foaming/high viscosity/high concentration/with solid and protect them from physicochemical reaction & remain the same.4. Low rotational speed prevent the change of existing quality, physics and chemistry properties.Size InformationNoItemDescription1MaterialPolypropylene, aluminum2Outlet DiameterDN32, DN40, DN51, DN63...(Match with the Equipment)3Power - * Connect to Air Compressor5Type of connectionQuick couple, Thread, FlangeDetails pictures:Working Principle: In the two symmetrical pump chamber equipped with a diaphragm, which is connected by a center couplet stem. Compressed air comes in from pump inlet valve, and enter into one cavity, push the diaphragm movement, and gases emitted from another cavity. Once to the destination, gas distribution components will automatically compressed air into another chamber, push the diaphragm to the opposite direction, thus make two diaphragm continuous synchronization to reciprocating movement. Compressed air goes into the valve, make the diaphragm to the right movement, and chamber suction make medium enter into, push the ball into the room, ball valve shuts down due to inhalation, Mediums discharged by extrusion, and opened the ball valve and at the same time close the ball valve, prevent back flow, thus to make medium ceaseless from the entrance inhaled, exit eduction.Main Advantages:* Due to the use of air power, the flow automatically changed according to export resistance. Which is suitable for highviscosity fluid.* In inflammable and explosive environment, the pump is reliable and low cost, won't produce spark and not overheat,* The pump volume is small, easy to move, no foundation needed, convenient installation and economy. Can be used as mobile conveying pump.* Where there are dangers, corrosive materials processing, diaphragm pump can be separated completely with outside.* The pump shearing force is low, physical effect to medium is small, can be used for conveying unstable chemistry fluid.FAQ:1. who are we?We are based in Jaingsu, China, start from 2019,sell to Domestic Market(31.00%),North America(20.00%),Central America(12.00%),Mid East(6.00%),Southeast Asia(5.00%),Northern Europe(5.00%),South Asia(5.00%),Eastern Europe(4.00%),South America(3.00%),Western Europe(3.00%),Africa(2.00%),Oceania(2.00%),Southern Europe(2.00%). There are total about 51-100 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?cosmetic production line,Liquid detergent production line,perfume production line,toothpaste production line,Lipstick production line4. why should you buy from us not from other suppliers?Ailusi Machinery is a professional factory which work on chemical machinery research, manufacturing, selling and offer excellent after-sale service. They mainly apply to cosmetic, food, pharmaceutical industry etc.5. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU,Express Delivery;Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;Accepted Payment Type: L/C,Western Union,Cash;Language Spoken:English,Chinese,Japanese,French,Russian,Korean/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
