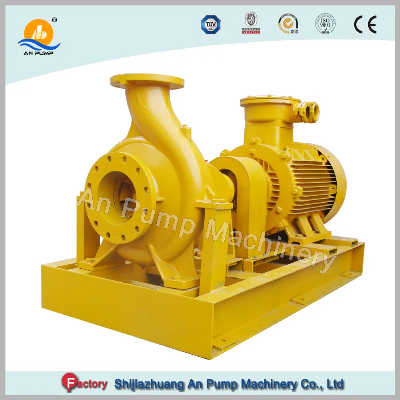

Heavy Duty Long Work Time Centrifugal Electric Lotion Pump

Heavy duty long work time centrifugal electric lotion pump  DescriptionQI series pump is single-stage , single-suction centrifugal pump , designed as per the international standard ISO2858 . It is a replacement of type BA water pump which is applicable to industrial and urban water supply and discharge as well as the agriculture irrigation . It can be used to transport liquid which have physical and chemical properties similar to clean water with a temperature not exceeding 80°C.   Advantage:20 years in producing centrifugal water pumpsIndependent Designadvanced technology from Australia, Canada, AmericaOEM availableSpecialized Test EquipmentAnti-rust treatment castingSupply reasonable suggestion for choosing water pumps   Features 1. Simple structure in linear type ,easy in installation and maintation. 2. Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts. 3. High pressure double crank to control the die opening and closing. 4. Running in a high automatization and intellectualization,no pollution 5. Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .     Application:1.Clean, thin, non-corrosive, non-flammable or non-explosive liquid without grain or fiber;2.Water supply system;3.Heat, air condition system;4.Booster, constant pressure water supply;5.Firefighting, splitting system;6.Irrigating, farming;7.Industry cooling, heater circulation system;8.Industry transferring, drainage system;    Performance curvePerformance parametersCentrifugal End Suction Pump PerformancePump TypeCapacity(m3/h)Head(m)Speed(rpm)Motor Power(kw)Eff(%)QI (R)503-143.7-821450-29000.55-1121.5-60QI 656-303.8-115.41450-29000.55-3025-75QI 8012-603.6-1281450-29000.55-3739-75QI 10024.3-1203.7-1331450-29001.1-7551-78QI 12551.4-2408.4-1331450-29004-11052-81QI 150104-24013-53145011-4562-81QI 200194-46013.1-55145022-9065.5-82QI 250320-76022.6-52148075-13267.5-84.5QI 300530-120021.9-38148090-13261.66-107.6 Specifications  TypeQIH, QICapacity (m3/h)3.5-1200Head (m)3.7-128Speed (r/min)1450-2900NPSHr (%)2.0-7.5Eff. (%)86-95Weight (kg)33-1720Dia Inlet (mm)50-300Dia Outlet (mm)32-250    Structure      Overall and dimension figure      RFQ:Tips for water pump installation Please take note as below when install the pump:1. The preformed hole on the foundation should be poured as the pump installation drawing.2. The installation level should meet the demand of the allowed vacuum suction height. The foundation should be in horizontal and stable condition, to make sure the rotation of the driver machinery same with the water pump in the direction.3. When connect by coupling, must make sure the pump and driver shaft center  should be in a straight line.4. If belt connection, the shaft center should be in parallel.5. The water pump suction pipe should be sealed well, and try to less the quantity of the elbow and check valve. When fill water, exhausted the air. It should be no any air when operate. We need to keep the suction pipe slopes up slightly, and then connect with the pump inlet.QA&QCReliable and comprehensive quality assurance system ensures the excellent quality of our products. We have got the "International Standard" certification, manufactured according to GB, Department of superscript, and industry standards, we implement a comprehensive quality management during the entire process of production, accordance with the process file processing strictly, and a variety of detection methods etc.We have met the requirements of GB3216-89 national Class B accuracy, , computer test data monitoring of water test pumping station application. There are physical chemistry laboratory, metallographic analysis room in our factory, for testing material properties in different respects.1. Quality Policy   Advocates quality is the life of enterprise, assiduous, the pursuit of excellence2. Quality objectives   qualified products rate 99%, factory qualified pass rate: 100%3. Quality Commitment  1) We will continue to improve the awareness of quality, implementing as GB/T19001-2000 quality assurance model standard, meeting technical requirements stipulated in the contract. We are not only discharge for the supplier host, but also for the quality of spare parts, external assistance products etc.  2) We promise the delivery time stipulated in the contract.   >>>Company IntroductionShijiazhuang An Pump Machinery Co., Ltd is one over 30 years experienced pump manufacturer (established at 1986) in mining and mineral, power plant, dredging and dredge, hydraulic, irrigation, pulp transfer, chemical, construction, sea water and oil & gas transfer etc.; An Pump Machinery is the pump factory has its own pump selection & design, research and development team to assure provide you efficient, energy saving slurry pump, water pump, diesel water pump, chemical pump and irrigation pump in selection & design, use and maintenance program. An Pump Machinery is the pump factory approved
