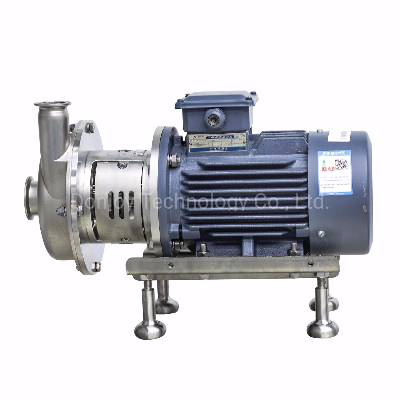

Klx-10 High Flow Centrifugal Pump with Sic/Sic Mechanical Seal

Klx-10 High Flow Centrifugal Pump with Sic/Sic Mechanical SealDonjoy experienced 20 years of development whose product lines are constantly enriched and developed. This centrifugal pump is made of stinless steel and with a shouded motor. Sanitary and cost-efficient design makes it perect for the daries,beverages,food-procesing,pharmaceutical and fine chemicals industries.Operating principles: Housed inside the casing, the impeller rotates in conjunction with the pump shaft. with this arrangement, the impeller blades convey energy to the fluid in the form of kinetic energy and pressure energy. This pump can't reversibles by simple reversal of the direction of rotation.The direction of rotation is clockwise when the pump is viewed from the rear side of motor.Design and features: Adjustable stainless steel legs, pump designed accroding to 3A sanitary standards.IEC or NEMA B34 motors,IP 55,F-Class insulation,50HZ,60HZ.Specification:Product Name:SS 304 Centrifugal Pump with SIC/SIC Mechanical Seal Clamp EndsValve Body Material:SS304/SS316L/1.4301/1.4404Seal Material:EPDM (Standard, FDA approval) FPM(Viton) and NBRMax. Flow: 150 m³/hMax. Speed:3600 min-1Max. Head:70H(m)Max. Working Pressure:7 bar/99 PSIMax. Working Temperature:120 °CMechanical seal:4SIC/SiC/EPDM(Standard), C/SIC, TC/TCSealing type:Flushed double mechanical seal/single mechanical seal(standard)Motor power:1.1kw, 1.5kw, 2.2kwVoltage:110V, 220V, 380VMotor Frequency:50HZ, 60HZSurface treatment:Inner polished Ra≤0.8μmand Sandblast outsideApplication structure:KS/BSAvailably connection:Tri-Clamp, Thread, FlangeAvailably standard:DIN, SMS, 3A, RJT, ISO/IDFOperated:ElectricLow discharge :Diaphragm valve/ball valve/butterfly valveCertificate:3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008Application scope: Dairy,food, beverage, pharmacy, cosmetic, etcPackaging Details:Plywood case or customerized. Or as per the request of customers.Delivery details:Usually within 20 days after receiving T/T down payment.   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
