Ce Certified Wheelchair Loading Ramp for Bus with Loading 350kg

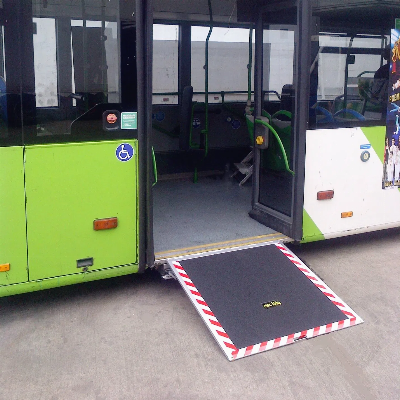

A. INTRODUCTION Electric Wheelchair Ramp can be applied on low-floor city bus and installed underside of passenger door step. When vehicle arrives at stop, the driver control the switch, and then platform can be extended and retracted smoothly. When the platform reach working position, the rear-end of ramp will raise automatically to eliminate height of threshold of passenger door so as to ensure rear-end of platform level up to vehicle floor, convenient for wheelchair to access vehicle. This bus ramp has got two patents. B. Safety Function: 1. Adopt anti-skid aluminum plate on the surface of platform 2. With sound and flashlight alarm during operation of wheelchair ramp 3. With danger alarm on the outer-edge of ramp 4. In the course of the ramp extends, if it touches any barrier, the ramp will retract automatically. For a moment, it will extend again. If this status repeats 3 times, then the ramp retracts to the rest position for safety. 5. The aluminum wheelchair ramps is interlocked with passenger door. C. Manual Function: In case that the driving motor doesn't work, the ramp can be retracted manually. ModelPlatform Net SizeOverall Width ThicknessOverall LengthLoading CapacityOwn WeightEWR-L7-S1005*10071130 mm70 mm1408 mm350 Kg50 Kg   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
