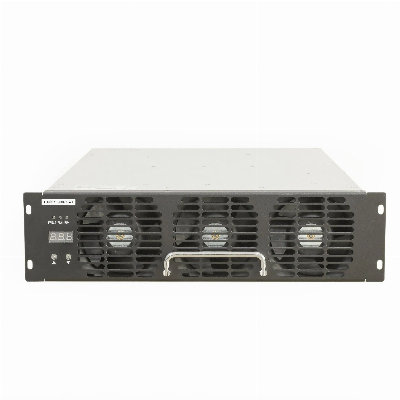

40kw EV Charging Module for DC Fast Electric Car Charger

  Basic InformationModel NO.:TH40F10030C7IP degree: IP54Can Bus Protocal: CanTransport Package: Wooden BoxCooling Method:  Fan CoolingApplication:DC Fast Charging StationPeak Efficiency: ≥96%Trademark: TONHEEMC:Class BOrigin: ChinaSpecification: 437.5*300*84mmH S Code: 8504401991  TH40F10030C7 is a DC charging module with high efficiency and high power density developed by Tonhe Company for charging stations. Output voltage up to 1000V, and in the range of 300-500VDC, 600-1000VDC constant power 40KW. Its interface and size are the same with 30KW module, which is convenient for users to update and iteration.Product CharacteristicsWide Constant Power Range: 300-500V,600-1000VUltra low standby power consumption: Less than 13kwUltra low THD: ≤5% Ultra wide operating temperature range: -40~75ºCUltra wide voltage input range: 380V±25%Ultra high conversion efficiency: Peak efficiency ≥96%Product Performance DataModel NoTH40F10030C7 AC inputInput voltageRated voltage 380VAC, three phase no center line,operating range 285-475VACInput frequency50±5HzInput power factor≥0.99Input overvoltage protection490±10VACInput undervoltage protection270±10VACDC outputRated output power40kWOutput voltage range50~1000VDCOutput current range0.5~134AOutput constant power rangeWhen output voltage is 300-500VDC and 600-1000VDC, constant 40kW will output.Peak efficiency≥96%Soft start time3-8SShort circuit protectionSelf-rollback protectionVoltage regulation accuracy≤±0.5THD≤5%Current regulation accuracy≤±1%Current sharing imbalance≤±5%Operating environmentWorking temperature-40ºC- +75ºCRelative humidity≤95% no condensationAltitude≤2000m, derating above 2000mProduct FeaturesCooling methodFan coolingStandby power consumption
