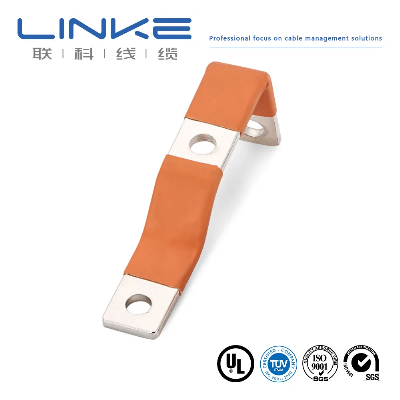

High Quality Flat Flexible Copper Bus Bar For Generator SetProduct DescriptionFlexible busbar is through brazing the copper foil parts together,which is 99.9% copper contented. It capitals the products excellect conductivity with less impurities. Laminated copper busbar have more current carrying surface area.Copper foil: 0.05mm to 0.3mm thick.The contact surface can be tinned or silvered according to the user's requirements.The current is based on the customer's requirement of 1 square knitting belt & the effective loads current 4A calculation. Copper conductors with different sectional areas have different parameters. The large area can be multi-layer or set.The price depends on the current copper price and current size.Material StandardGB : T2 Copper with Min. 99.9% DIN: E-Cu58 (Number: 2.0065) EN: Cu-ETP ( Number: CW004A) ISO: Cu-ETP UNS: C11000 JIS: C1100 BS: C101 Other Material also can be customizedResistance0.00001Ω Conductivity57% Copper Foil of Single Layer Thickness0.1/0.2/0.3/0.5/1.0mm,depend on bus bar structure, we will advise suitable thicknessInsulation MaterialPVC Dipping Coating is good performance, Special shaped bus bar can be put on directly, it is not easy to break when it be bent with many times.Insulation PerformancePE and PVC are good, PVC dipping is better than PE heat shrink tubesFlame Retardant/Fire ResistanceUL94-V-0 or upon you requestLeakage TestingPVC Dipping Sleeves: In condition of 3500VDC with 30s upon thickness 1.5mm, Leakage is 0.025 MA; In condition of 5000 VAC with 30s to 60s upon thickness 1.8mm to 2.0mm, Leakage is 0.065 MA; Or upon your working voltage, we advise to choose better solution.Surface PlatingNickel, tin or silver plated etc Plating Thickness:Normally 3um to 12um or upon customers' requestSalt Spray TestingIn a neutral environment, nickel can bear 240 hours. Silver is lower, tin is lowestBending TestingBend 10000 times in 15 radian angle without breakage or fracture.Temperature Rise TestingDepend on flexible busbar cross-sectional area, We can offer all temperature rising test report before delivery if you requestOperating Temperature-45 to +150 ºC Copper Foil Tensile Strength≥500NQuote TimeQuotation sheet will be sent in 1-3 working days when receive your enqiurySample/Trial Order Delivery TimeIn 5 -15 working days according to different bus bar structure and manufacture processQuality Management StandardMeet Auto Industry IATF 16949Eco-friendly CertificateROHS, REACH Copper bus bar is a conductive connector used for electrical power transmission and distribution. It is typically made from high-purity copper material and comes in a rectangular or flat shape. Copper bus bars are commonly used in buildings, electrical equipment, power plants, substations, and industrial machinery, among other applications. Copper bus bars possess excellent conductivity, thermal conductivity, and mechanical strength, making them an ideal choice for carrying electrical currents. They can withstand high current loads in electrical systems and efficiently transport current from one place to another. The high conductivity of copper minimizes current losses and heat generation. The design and dimensions of copper bus bars vary based on specific application requirements. They are typically connected to other electrical equipment or circuits using methods such as bolts, welding, or terminal boxes. In many power systems, copper bus bars are used to connect various devices such as switches, transformers, batteries, and televisions. Conductor : Flexible Bare annealed copper wire Insulation:copperChoice of Black, Orange, Red or Yellow Blue jacket, single & double insulated.SQ MM sizes (European style) :customization AWG sizes (North American style) :customization Wide temperature range: customization Company ProfileWire and cable manufacturer Linke Cable Technology Co., Ltd is a leading cable supplier in China. In the past over 10 years, Linke Cable has been focusing on R&D, production and marketing of wire and cable. Linke provide various cables&custom cable solutions for all over the world. We are specialized in EV charging cable, medical cable, silicone cable, spring cable, braided cable, towlobe cable, UL wire, automotive cable, etc.At Linke cable, we believe there's a better way to bring better cables to market. We use an engineer-to-engineer approach to develop better cables for customers and improve the quality of one's life. CertificationsWe past UL1007,UL1185,UL1672,UL10070,UL10483,UL1015,UL1569,UL10012,UL10269(Single conductor,thermoplastic insulation)UL2095,UL2129,UL2468,UL2586,UL2725,UL20233,UL20280,UL20963,UL2103,UL2463,UL2517,UL2587,UL2835,UL20276,UL20549,UL21198,2104,UL2464,UL2576,UL2661,UL2919,UL20279,UL20886,UL21664 ISO9001 and ISO13485,TS16949CNR- Appliance Wiring Material,Extruded PVC Insulated Single,rated 105ºC,1000V,ClassI,GroupA,B,or AB, FT1 and/or FT2.Extruded PVC Non-integral Jacketed Cable, rated 105"C, 1000V, Class I, Class or Clas
