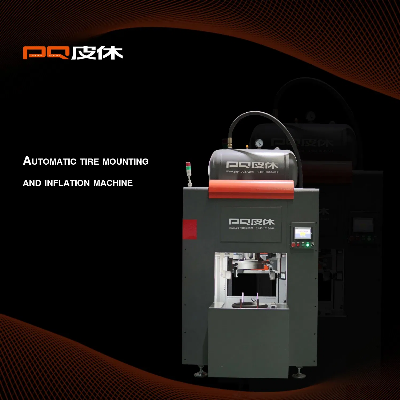

High Quality Automatic Tire Assembly Machine Tyre Inflator and Mounting

Automatic Tire Assembly  Machine Mounting and Inflator      Specifications:•   Used for mounting and inflation tires of two/three-wheel vehicles•    Automatic grade:Semi-automaticFeatures(Tire mounting machine ):•   Easy to operate •   Trouble free operation •   Robust construction •   Cycle time as fast as 8 sec/ea •   Pneumatic(working air pressure at 5 to 6 Bar) & electric operated machine •   While assembly no damage & dent marks on tyre •   Settable for different models of tyresFeatures(Tire inflation machine ):•  PLC controlled inflator •  Smallest footprint to maxmize available line side space,also suitable for low volume application •   Maintenance-friendly design •   Full data retention/quality assurance record keeping•   Inflation accuracy of +/- 1 to 2 psiApplication:•  widely used for two/three  wheeler manufacturers & at workshop housesDetailed Photos   1.The tire mounting mechanism can be set up according to different tires to overcome difficult tires and improve the success rate.   2.sliding platform mechanism with travel distance to meet the requirements of 16-17 inch wheels.  3.To mount the tire, simply put the wheel hub and tire into the mold and mount the tire with one click. 4.After the tire is mounted, return to the original station and remove the wheel hub. 5.The upper and lower heights of the tire mounting mechanism can be set, which improves the convenience of replacing varieties. 6.Tire positioning fixture for easy and fast adjustment, reducing the requirement for employees to place tires. 7.Suitable for front and rear wheel assembly.8.To replace the mold with different wheel hub diameters, simply remove the original mold and replace it with the corresponding model mold. 9. Same hub diameter, different heights: Set tire mounting data on the display screen based on the hub height.        Important Configuration Notes   PLC control systemMITSUBISHIPhotoelectric detectionOmronPneumatic ComponentsAirtacServo MotorXINJESwitch button Schneider     Installation Instructions 1.The equipment should be installed in less dust,non-corrosive gas,humidity
