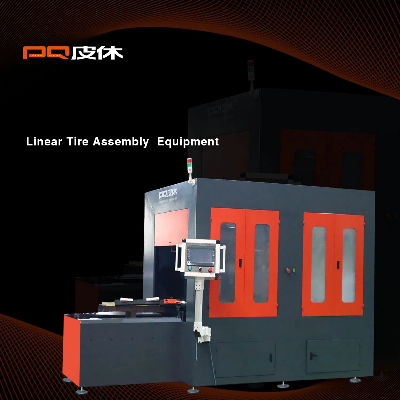

Linear Tire Assembly Machine Tire Inflator and Mounting Robotic Equipment

  Linear Tire Assembly Equipment Inflator Mounting MachineSpecifications:•   Used for mounting and inflation tires of four-wheel vehicles,like trailers ,off-road racing cars,Agricultural vehicles,etc. •    Automatic grade:Semi-automaticFeatures(Tire mounting machine ): •   Easy to operate•   Trouble free operation •   Robust construction •   Cycle time as fast as 20 sec/ea •   Pneumatic(working air pressure at 5 to 6 Bar) & electric operated machine •   While assembly no damage & dent marks on tyre •   Settable for different models of tyresFeatures(Tire inflation machine ):•  PLC controlled inflator  •  Smallest footprint to maxmize available line side space,also suitable for low volume application •   Maintenance-friendly design •   Full data retention/quality assurance record keeping •   Inflation accuracy of +/- 1 to 2 psiApplication:•  widely used for four  wheeler manufacturers & at workshop houses Detailed Photos    Tire mounting machine 1.Tire mounting mechanism can be set actions according to the different tires to overcome difficult tires and improve the success rate. 2.The upper and lower height of the tire mounting mechaism can be set to improve the convenience of replacing varieties. 3.The completion of tire mounting is designed with tire calibration funtion to improve the success rate of inflation.    4.New type of tire positioning clamp,easy and fast adjustment,reducing requirement for staff to place tires.    tire inflation  machine 5.The upper and lower height of the new type of tire inflation  mechaism  can be set position on the operating screen to improve the convenience of replacing varieties.6.The inflation mechanism is driven by a servo hydraulic system, resulting in low inflation noise. 7.The inflation mechanism adopts linkage linkage mechanism to ensure the concentricity of the tire during inflation and increase the inflation pass rate.   conveying mechanism  8.The conveying mechanism adopts a U-plate chain lifting and reciprocating method, which has the advantages of low noise and compact structure.9.Number of equipment operators: 2 Important Configuration Notes   PLC control system Mitsubishi, JapanPhotoelectric detectionJapan OmronPneumatic componentsTaiwan AirtacMotor reducerTaiwan LimingSwitch button Schneider, France.Installation Instructions1.The equipment should be installed in less dust,non-corrosive gas,humidity
