Adas System Anti Collision Device Long Range Radar 40m

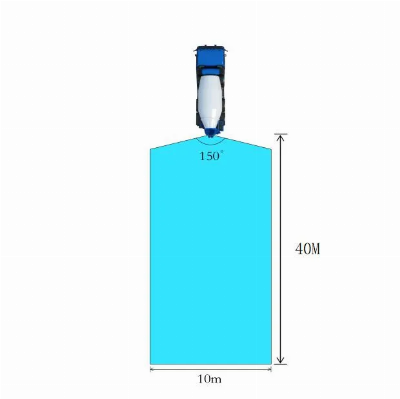

Features:1. 79Ghz Millimeter Wave Radar. 2. Special for commercial vehicles 3. High speed mode, detect targetsstationary or in motion 4. Low speed mode, detect targets in motion 5. Vehicle, passengers detectable. 6. Inside siren / light warning. 7. 10*40M detection area.8. 3 alarm distance levels 9. work well at rain/fog/snow/night 10. right/left/rear installation optional1. Product introduction Thank you for choosing our 77GHz millimeter wave radar obstacle avoidance warning system. The product consists of a main control box, (1-2) 77GHz millimeter wave medium and short range obstacle avoidance radars, (1-2) indicator lights (or display screen +camera), a buzzer and a connecting harness. Main control box function: receive and process 77GHz obstacle avoidance radar data, and can access 2 channels of obstacle avoidance radars at the same time to set the radar warning range. The warning range is set in three areas within the rectangular range of 4m around the radar and 40m long.The 3 level's range can be customized.   Level 1 (5-7M): the warning light is always on and the buzzer does not sound; Level 2 (3-5M): the prompt light flashes slowly and the buzzer flashes off; Level 3 (0-3M): the prompt light flashes quickly and the buzzer rings for a long time. At the same time, it can output CAN data, TTL serial port data and prompt light / buzzer signal. Medium and short range obstacle avoidance radar: the obstacle avoidance radar is a 77GHz vehicle mounted millimeter wave radar for detecting obstacles in front of the vehicle when driving at medium and low speeds. Compared with infrared, laser and ultrasonic radars, this millimeter wave radar is less affected by weather changes, and has good anti-jamming performance and range detection capability, with a detection range of 40m. Product application: The 77GHz millimeter wave radar obstacle avoidance and warning system is suitable for installation around the vehicle body. The area corresponding to each position that needs early warning is set separately. It is widely used in heavy commercial vehicles such as trucks, construction machinery vehicles, airport and port machinery vehicles; It can also be connected with electric scooter controller, driving school car brake controller and other equipment for automatic obstacle avoidance braking.   2. Product Listnamequantity77GHz millimeter wave obstacle avoidance radar1-2 (optional)Main control box1power cord1 articleEarly warning output line1 articleBuzzer1Warning light1-2 (configured according to the number of radars)Prompt light extension line1-2 (4m / piece, configured according to the number of radars)Radar line1-2 (5m / piece, configured according to the number of radars)Radar stand1-2 (configured according to the number of radars)Radar extension line10m / strip (optional)Kit1 Packinstructions(1)3. Technical parameters     projectSpecifications01working voltage12-24V02Radar operating frequency band76-77Ghz03working temperature- 40ºC ~ + 85ºC04Single radar power consumption
