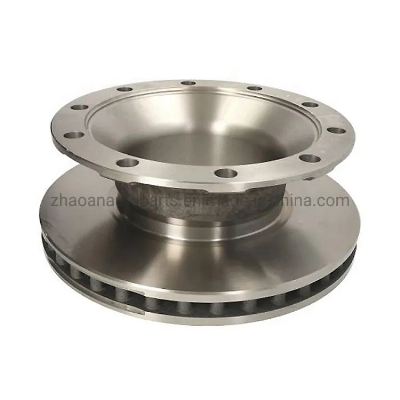

Truck Brake Drum Brake Disc 0308835050 0308835057 908835057 ECE R90

Carfitment and part number OEM No.Ref. 0308835050 0308835057 908835057 BCR222A,BPW112,569141J,MBR5105,59271,93127100     Quick Details OE NO.: 0308835050 0308835057 908835057 Reference NO.: BCR222A,BPW112,569141J,MBR5105,59271,93127100 Size: 430x159.5x45mm Material: G3000/HT250 Warranty: 1 Year Car Model: BPW SB SH Brake Disc Type: Internally Vented Fitting Position: Front Axle ECE R90: Approved MOQ: 100 PCS Payment Term: T/T 30% Deposit, the balance made before shipment Supply Ability Supply Ability 10000 Piece/Pieces per Month Packaging & Delivery Packaging Details Plastic Bagged + Neutral Box or Printed Box as per Customers' Design + PalletPortGuangzhouProduct DescriptionTypeABCDEHOLESVented430335159.54529010VEHICLE APPLICATIONBPW SB 4309 [03->] - TRAILERBPW SB 4345 [03->] - TRAILERBPW SH SERIES [03-10] - TRAILERBPW SH SERIES [10->] - TRAILERChemical CompositionMaterialCSiMnSPCrHT250/G30003.10-3.55%1.90-2.40%0.50-0.90%0.15% max.0.15% max.0.25% max.Microstructure Graphite Structure: Predominately Type A, Size 3-5 Pearlite: 95% min. Ferrite: 5% max.Mechanical Property Hardness: 187 - 241 HB Tensile Strength: 220 Mpa (min.)Machining Requirement Runout: 0.05mm (max.) DTV: 0.127mm (max.) Roughness: Ra 1.6μm (max.) Dynamic Balance: 100% Balanced 1) Full range - 500+ numbers for Commercial Vehicles & 2600+ numbers for Passenger Cars 2) TS16949 Quality System Certification & ECE R90 Certified 3) Competitive Factory Price 4) 100% crucial dimension inspection 5) Leading supplier in Europe, South America, North America and Middle East.CV Brake Discs- Over 500 part numbers - Basic material, as well as in high carbon - Automatic production lines are usedCar Brake Discs/Drums- Over 2600 part numbers - Fast launch of new items to market - Precise tolerance - 100% balancing and edge marking - Screw KITs available  High Carbon Brake Discs- Increased noise damping capability - Improved heat dissipation - Better resistance to thermal cracking and distortion  Coated Brake Discs- Environmentally friendly hexavalent chromiumfree anti-corrosion coating - Install the disc right out of box, no cleaning needed - Provides a long lasting clean appearance  Drilled/Slotted Brake Discs- Enhanced braking power - Continuous cleaning of the brake pad surface - Cooler operating temperatures - Slots also serve as a wear indicatorBlack Hat Brake Discs- Black coating on the hat - Enhanced rust prevention and clear appearance - For passenger cars, light / medium duty trucks                                                                                        Casting finish                                                                                       - Smooth                                                                                       - Even                                                                                - Free of blow holes                                                                                 Machined Area                                                                                 - Sharp cutting tool                                                                            Vent configuration                                 - Correct design used as OE design or better                                                                                                                                Material Specification                                                           - Correct ingredients used                                                        - Cast iron properties correct                                   - Cooled correctly at a constant controlled                                                  temperature to give correct hardness     /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
