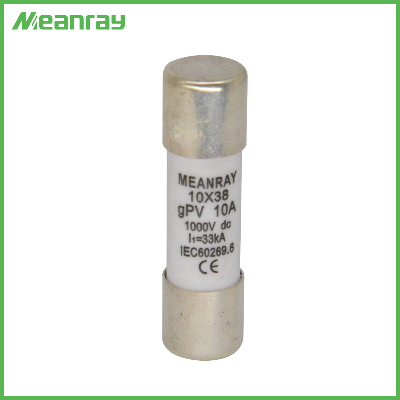

Good Waterproof 1500VDC Solar Fuse Link and Holder

                                           DC 1000V 30A PV Fuse passed TUV certificate solar 1000v systerm fuse1500VDC Solar Fuse Link and Holder Description:ItemDC FUSEPole1P,2P1P,2PVoltage≤1000VDCCurrent1A,2A,3A,4A,5A,6A,8A,10A,12A,15A,20A,25A,32AGiggest block ability(KA)33KAStandardIEC/EN60269Commection(mm)2.5-10Power consumption(W)3.5Working Temperature-5° to +40°Protection DegreeIP20Dimension(W)X(H)X(D)10X3818X60X78Installation35MM DIN RAILInstallation Altitude≤2000M1500VDC Solar Fuse Link and Holder Feature: DC1000V ROHS 30A PV Fuse series of fuse consists of fuse link and fuse base. The variable cross-section fuse body made by pure copper piece (or copper wire, silver wire, silver piece) is sealed in the fusion tube which is made by the high strength porcelain or epoxy glass cloth pipe, there is full of the high-purity quartz sand processed after chemistry to take the extinguishing of arc medium in the tube. The two sides of the fuse use the spot welding to reliably connect with the end plate and to form the cylindrical cap shape structure. Fuse base suppressed by the resin or plastic casing fitted with contacts and contains the fusion pieces, the connection made by riveting as the support of the appropriate size fuse body parts. This series of fuse has many merits such as small in size, convenient for installation, safe in usage, beautiful in appearance and so on. MRPV-25B DC FUSE CATALOGUE:Relevant DC Products:1500VDC Solar Fuse Link and Holder FAQ: Q: If I'm interested in your DC FUSE when I can receive your quotation and detail information after send the enquiry? A:All your enquiry will be replied in 24hours. Q:Your DC FUSE seems perfect but what's the difference between you and other suppliers?Because I find some cheaper price from others! A: Our DC FUSE are high quality customized.for solar system I think compare the quality first and then compare the price is the best way. Q:Can I get a sample before the order because I really don't how is your DC FUSE quality? A:Of course!We also think sample order is the best way to build the trust.  Q:How's the delivery?Because I really need them is urgently? A:For sample order 3~7days will be no problem.And for regular order we promise in 15days. Q:How's the warranty  period for your DC FUSE? A:We offer one year warranty for our customer. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
