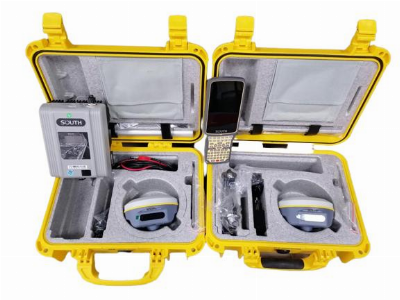

Accurate and Convenient South Brand G2 Gnss Rtk GPS Receiver

Detailed Photos Product ParametersGNSS FeaturesChannels1598GPSL1, L1C, L2C, L2P, L5GLONASSL1C/A, L1P, L2C/A, L2P, L3BDSBDS-2: B1I, B2I, B3I BDS-3: B1I, B3I, B1C, B2a, B2b*GALILEOSE1, E5A, E5B, E6C, AltBOC*SBAS (WASS, MSAS, EGNOS and GAGAN)L1C/AIRNSSL5*QZSSL1, L2C, L5*MSS L-BandBDS-PPPPositioning output rate1Hz~20HzInitialization time< 10sInitialization reliability> 99.99%Positioning Precision*Code differential GNSS positioningHorizontal: 0.25 m + 1 ppm RMS Vertical: 0.50 m + 1 ppm RMSStatic(long observations)Horizontal: 2.5 mm + 1 ppm RMS Vertical: 3 mm + 0.4 ppm RMSStaticHorizontal: 2.5 mm + 0.5 ppm RMS Vertical: 3.5 mm + 0.5 ppm RMSRapid staticHorizontal: 2.5 mm + 0.5 ppm RMS Vertical: 5 mm + 0.5 ppm RMSPPKHorizontal: 3 mm + 1 ppm RMS Vertical: 5 mm + 1 ppm RMSRTK(UHF)Horizontal: 8 mm + 1 ppm RMS Vertical: 15 mm + 1 ppm RMSRTK(NTRIP)Horizontal: 8 mm + 0.5 ppm RMS Vertical: 15 mm + 0.5 ppm RMSRTK initialization time2 ~ 8sSBAS positioningTypically < 5m 3DRMSBANDA-LHorizontal: 5-10cm (5-30min) Vertical: 10-30cm (5-30min)IMULess than 10mm + 0.7 mm/° tilt to 30°IMU tilt angle0° ~ 60°Hardware PerformanceDimension130.5mm(φ) × 84mm(H)Weight850g (battery included)MaterialMagnesium aluminum alloy shellOperating temperature-25ºC ~ +65ºCStorage temperature-35ºC ~ +80ºCHumidity100% Non-condensingWaterproof/DustproofIP68 standard, protected from long time immersion to depth of 1m IP68 standard, fully protected against blowing dustShock/VibrationWithstand 2 meters pole drop onto the cement ground naturally MIL-STD 810GPower supply6-28V DC, overvoltage protectionBatteryInbuilt 6800mAh rechargeable, removable Lithium-ion batteryBattery lifeSingle battery: 16h (static mode), 8h (Base + UHF), 12h (Rover + UHF), 15h (Rover + Bluetooth)CommunicationsI/O Port5PIN LEMO external power port + Rs232 Type-C interface (charge + OTG + Ethernet) 1 UHF antenna interface SIM card slot (Micro SIM)Internal UHF2W radio, receive and transmit, radio router and radio repeaterFrequency range410 - 470MHzCommunication protocolFarlink, Trimtalk450s, SOUTH, SOUTH+, SOUTHx, HUACE, Hi-target, SatelCommunication rangeTypically 8km with Farlink protocolCellular mobile network4G cellular module standardBluetoothBluetooth 3.0/4.1 standard, Bluetooth 2.1 + EDRNFC CommunicationRealizing close range (shorter than 10cm) automatic pair between receiver and controller (controller requires NFC wireless communication module else)WIFIModem802.11 b/g standardWIFI hotspotReceiver broadcasts its hotspot form web UI accessing with any mobile terminalsWIFI datalinkReceiver can transmit and receive correction data stream via WiFi datalinkData Storage/TransmissionStorage8GB SSD internal storage standard, extendable up to 64GB Automatic cycle storage (The earliest data files will be removed automatically while the memory is not enough) Support external USB storage The customizable sample interval is up to 20HzData transmissionPlug and play mode of USB data transmission Supports FTP/HTTP data downloadData formatStatic data format: STH, Rinex2.01, Rinex3.02 and etc. Differential data format: RTCM 2.1, RTCM 2.3, RTCM 3.0, RTCM 3.1, RTCM 3.2 Output format: ASIC (NMEA-0813), Binary code (SOUTH Binary) Network model support: VRS, FKP, MAC, fully support NTRIP protocolSensorsElectronic bubbleController software can display electronic bubble, checking leveling status of the carbon pole in real-timeIMUBuilt-in IMU module, calibration-free and immue to magnetic interferenceThermometerBuilt-in thermometer sensor, adopting intelligent temperature control technology, monitoring and adjusting the receiver temperatureUser InteractionOperating systemLinuxButtonsSingle buttonIndicators5 LED indicatorsWeb interactionWith the access of the internal web interface management via WiFi or USB connection, users are able to monitor the receiver status and change the configurations freelyVoice guidanceIt provides status and operation voice guidance, and supports Chinese/English/Korean/Spanish/Portuguese/Russian/TurkishSecondary developmentProvides secondary development package, and opens the OpenSIC observation data format and interaction interface definitionCloud serviceThe powerful cloud platform provides online services like remote manage, firmware update, online register and etc.After Sales Service1. Warranty: 12 months warranty is offered for survey equipment. 6 months warranty offered for survey accessory. Warranty comes in effective from the day your receive good. 2. Repair in warranty: We are responsible for supplying new parts for repairing. Round way freight will be bored by us. If it is necessary, product will be required to send back to our service center to be repaired, round way freight is charged by us. Our engineer will repair in your office for special case. 3. Repair out of warranty: We will offer related parts at commercial cost. Freight will be shared by us. 4. Training and calibration: Our engineer is qualified for training and calibration for GNSS and Total Station on site.
