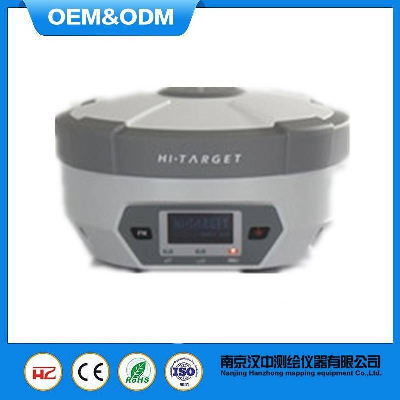

220 Channel GPS System Hi-Target H32 Gnss Rtk GPS Receiver (H32)

Hi-Target H32 Gnss Rtk GPS Product DescriptionProduct DescriptionHI-TARGET H32 GNSS RTK GPS Receiver MEASUREMENTS120 ChannelsProven NovAtel GNSS technologyMultipath mitigating technologyAuxiliary strobe signals, including a configurable output for time synchronization and mark inputsSatellite signals tracked simultaneouslyGPS: L1, L2, L2CGLONASS: L1, L2Galileo: E1GIOVE-A/GIOVE-B (test)BDS/CompassSBASQZSS   POSITIONING PERFORMANCEStatic and Fast Static GNSS surveyingHorizontal: 2.5mm+0.5ppm RMSVertical: 5mm+0.5ppm RMS   Post Processing Kinematic(PPK / Stop & Go) GNSS surveyingHorizontal: 1cm+1ppm RMSVertical: 2.5cm+1ppm RMSInitialization time: typically 10 minutes for base while 5 minutes for roverInitialization reliability: typically > 99.9%   Real-time Kinematic (RTK) surveyingHorizontal: 10mm+1ppm RMSVertical: 20mm+1ppm RMSInitialization time: typically < 10 secondsInitialization reliability: typically > 99.9%   Code Differential GNSS positioningHorizontal: 25cm+1ppm RMSVertical: 50cm+1ppm RMSSBAS: 0.60m Horizontal   HARDWARE PhysicalDimensions (w x H): 16.5 cm x 10.5 cm (6.50 in x 4.13 in)Weight: 1.75kg (3.86lb) with internal battery, internal radio, standard UHF antennaOperating temperature: -45ºCto +65ºC (-49ºF to +149ºF)Storage temperature: -55ºC to +85ºC (-67ºF to +185ºF)Humidity: 100%, consideringWater/dustproof: IP67 dustproof, protected from temporary immersion to depth of 1m (3.28ft).Shock and Vibration: Designed to survive a 2m (6.56ft) natural fall onto concrete.Display: 128×64 resolution, 1.54 inch OLED screen   ElectricalPower 6V to 28V DC external power inputPower consumption 2.5WAutomatic Switching between internal power and external powerRechargeable, removable 7.4V, 4400mAh Lithium-Ion battery in internal battery compartment   Internal battery lifeStatic 13 - 15 hoursRTK Rover (UHF/GPRS) 10 - 12 hoursRTK Base 8 - 10 hours   I/O interface1 x Bluetooth1 x standard USB2.0 port2 x RS232 serial port2 x DC power input (8-pin & 5-pin)   COMMUNICATION AND DATA STORAGEGPRS/GSMFully integrated, fully sealed internal GPRS/GSMNetwork RTK (via CORS) range 20-50km   HI-TARGET internal UHF radio (standard)Frequency: 460 MHz with 116 channelsTransmitting Power: 0.1W, 1W, 2W adjustableTransmitting Speed: Up to 19.2KbpsWorking range: 3~5Km typical, 8~10km optimal   HI-TARGET External UHF radio (standard)Frequency: 460 MHz with 116 channelsTransmitting Power: 5W, 10W, 20W, 30W adjustableTransmitting Speed: Up to 19.2KbpsWorking Range: 8~10Km typical, 15~20km optimal   Support other external communication deviceFor example, external GSM modem.   Data storage64MB internal memory   Data formats(1Hz positioning output, up to 50 Hz - depends on installed option)CMR: CMR+, CMR input and outputRTCM: RTCM 2.1, 2.3, 3.0, 3.1 input and outputRTCA: RTCANavigationoutputs: NMEA-0183, NovAtel ASCII and Binary logs  Company ProfileNanjing Hanzhong mapping equipment Co., Ltd. is a company to provide professional surveying and mapping services for the country mapping units. The company set sales, repair, and services, it is in specialized in sales of surveying instruments in domestic and abroad.Mainly sales of total station, auto/digital level, auto/electronic theodolite, GPS, GNSS RTK, receiver, laser distance meter, handheld GIS,UAV. etc. And some accessories for these surveying instruments. We can supply with trimble, leica sokkia, spectra, nikon, topcon, sanding, hi-target, south, kolida, chc, stonex, unistrong, foif brands. etc.   Our Company′s employees graduated from engineering, surveying, and mapping professional institutions of higher learning, they have professional knowledge, so we are the high-quality sales and service team to provide you with excellent quality instrument service, customized, comprehensive, practical, and efficient measuring solutions .At the same time also provide intimate after-sales service.Our aim: Integrity, professionalism, serviceOur goal: To do the best mapping equipment supply service providers    FAQ FAQ:Service 1.Any inquiries will be replied within 12 hours.2.All our products have one year warranty, And we sure the products will be free from maintenance within warranty period.3.All products will have been strictly quality checked in factory before sending out.   We accept payment by TT,Paypal, West union.If you'd like other payment method, Pls let us know before the order Delivery / shippment :  1.Usually, we will send out the products within 3-5 working days after the payment confirmed2.Before shipment, pls supply the following information to us :Contact person or company name,Detail address,Telephone No,Zipcode3.The buyer are responsible for the tax and/or duty charged by their country.   Return and warranty:1.All products are inspected before shipment, if you are not satisfactory with the purchase,you can exchange the items in one week,and you must contact us within 24 hour of receipt of the products.2.The shipping charges are not refundable and the customer should be responsible
