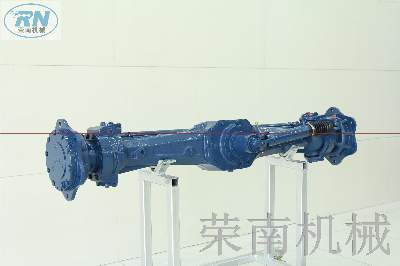

RN85 Tractor Front Drive Axle (704) 4WD axle

Product Information: >>Implementing ltalian Fiat wheel tractor advanced technology; >>Using middle-arranged type transmission shaft and swing type center swing pin; >>Internal structure:middle reducer,differential and final planet reducer, good rigidity with whole front axle case; >>Roller bearing using between the ending and the pin for light and efficient steering; >>Independent oil road,hydraulic pressure steering,steering angle to 50°; >>Adopting machining center and special machine for machining,planetary reduction gear for gear  grinding,all the sealing parts are imported ones,not damaged assembly; >>Adaptive for 65-80ps four-wheel driving tractor; Technical Parameter: Performance parameterRN85 Front driving axle (704)Driving ratio14.95Outline dimension1640×570×330Driving shaft front axle Middle-arranged driving shaft Input shaft parameterm=2  z=14  α=30°Connection bolt between hub and spoke6×M16×1.5Distance between spokes (mm)1575The pressure of the hydraulic oil10±0.5load bearing (kN)16.27Net weight (KG) without oil180Oil VolumeMiddle (L)5Round edge (L)1.5Front Axle PositionExtroversion angle of front wheel1°Introversion angle7°30´Retroverted angle3°Fore tie (mm)1~5Steering methodFluid-link steeringSwing angle of the front axle12° Maximum steering angle of front wheel50°Steering CylinderSteering hydraulic cylinder type Right rearDiameter of steering hydraulic cylinder(mm)50Steering hydraulic cylinder quantity1Steering hydraulic cylinder travel(mm)190/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
