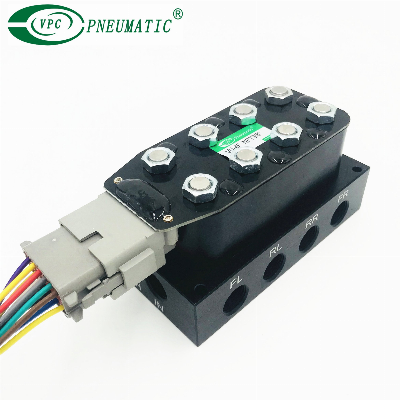

Accuair Vu4 4corner Air Ride Suspension Valve Manifold

NPT 1/4" VU4 4-Corner Solenoid Valve Unit Air Suspension Manifold is engineered to provide the cleanest installation and most reliable operation on the market. This electronic solenoid valve unit inflates and deflates up to (4) individual Air Springs and has built-in push-to-connect 3/8" D.O.T. approved air fittings for all of its plumbing connections. It's more smart than our previous manifolds Assembly Valve Block wiring harness 160-4F Solenoid Valve.Air Compressors AirMaxxx 480C Chrome 3/8" Valves Air Bag Management Blk 7 SwitchCompatiable Suspension Type4-Corner Full Air SuspensionVoltage Requirements  10.5-16 VoltsCurrent Requirements 1.1 Amps (for each of the (8) Valves)Connectors IP67 certified (immersion up to 3 ft)Fitting Size 3/8" D.O.T. / P.T.C (x 8), 1/2" NPT (x 4)No. of Inlet Ports 2No. of Exhaust Ports2Max Operating Pressure 200PsiCv Flow Factor 0.33Average Adjustment Time 2.2 Seconds (from 10% to 50% of travel)1. wiring harness for easy installation2. 3/8" press-fit D.O.T Fittings eliminate pipe threads for 100% leak free operation3. High Pressure Rated for operation up to 200psi4. Anodized Aluminum Manifold to prevent corrosion5. 100% weather resistant for harsh under vehicle environments6. For use with any brand of controller or switches Standard or Nonstandard:Standard Structure:Control Pressure:High Pressure Power:Solenoid Material:Alloy Temperature of Media:High Temperature Media:Air Port Size:1/4" 3/8" 1/2" Place of Origin:China (Mainland) Model Number:VVU-3L-4F Brand Name:VPC Application:Air Suspension, Air Suspension    /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
