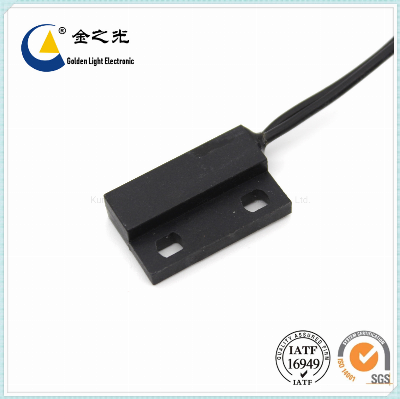

Normally Open Surface Mount Reed Switch Magnetic Inductive Proximity Sensor

Feature:Alternative 59145 serise, is an ideal magnetic component choice for electronic devices, like smartphone, notebook, Led lighting etc.-- Used Harmlin NC reed switch MDCG-4, quick response, light weight, stable and reliable quality-- More than 1 billion reliable operations at dry or low level circuits-- Working well on supply voltage & zero power consumption-- Best choice for Hall sensor-- Excellent performance for assembly automatically  Product ParametersSensor solutions + wire harnesses: tailor made to your requirements including RAST-Assembly.Electronice SpecficationType/APull-on value(PI)AT10-15Drop out value(DO)AT4minContact Resistance Ω0.35maxBreakdown VoltageVDC250Contact CapacitancepF0.7maxRated PowerW10maxMax Limited CurrentADC1.2 maxMax Swithcing VoltageVDC200 maxMax Switched-currentADC0.5 maxOperate Timems1maxRelease Timems1maxResonant FrequencyHz4000Max operating frequencyHz500Storage temperatureºC-40-+105  Appearance Characteristic  HALLTYPE LatchingWIRES 2-WireBON/BOFFmT12.0 / -12.0SUPPLY CURRENTmA5SUPPLY VOLTAGEV3.0 to 24OPERATING TEMPERATURE°C-20 to +85HOUSING MATERIAL PA6+GFCABLE TYPE UL1332, 20AWGCOLOR BLACKDIMENSION mm28.57×19.05×6.35Optional Reed Switch parametersContact TypeNormally OpenNormally Open High VoltageNormally ClosedChange OverPull In AT-Range10 - 4010 - 4010 - 4010 - 40Contact RatingVA/Watt - max.101055Switching voltageVdc - max.200300175175Vac - max.140265120120Breakdown Voltage Vdc - min.250400200200Switching CurrentAdc - max.0.50.400.250.25Aac - max.0.350.300.180.18Carry Current Adc - max.1.21.401.51.50Contact/Initial Resistance Ω - max.0.20.20.20.2 Insulation Resistance Ω - min.10101010109109Contact CapacitancepF - typ.0.30.20.30.3Operating Temperature°C-40 to +105-40 to +105-40 to +105-40 to +105Operate Time ms - max.1.01.03.03.0Release Timems - max.1.01.03.03.0Shock 11ms 1⁄2 sineG - max.1001005050Vibration 50-2000 HzG - max.30303030   Application.   ·Security and access contrl; ·Position Sensing; ·Process Equipment; ·Small appliances; ·Factory automation; ·Major appliances; ·Proximity and limit sensing; ·Moible phone; ·office equipment; ·Industrial Control; About usGLE electronic technology Co., Ltd,is a high-tech enterprise specializing in the development automobile components such as Reed switchs, Hall sensors, with Injection molding, thermosetting material housing, stamping, precision hardware processing,etc.With over 10 years rich experience, we not only work closely with our clients with a focus on quality product development, but also provide customized service for satisfying different requirements.At GLE, we believe in our strength and believe in your creative vision, so by choosing us as your manufacturing partner, you will have a ture partnership that will see that beautiful future come to life.- Factory Show  - Certification  - Our Clients- Our Culture. - Our Advantages1: Your inquiry related to our products or prices will be replied in 12 hours.2: Protection of your sales area, ideas of design and all your private information. 3. Over 10 years rich experience, confirm cost savings and waste minimization.4: Best quality and competitive price.- FAQQ1:Are you a trading company or manufacturer?A: We are manufacturer.Q2:Can I get sample from you?A:Yes,we can provide the free samples for your testing,please contact us for free and tell us which product you need.  Q3:Do you accept customization?A:Yes,customization is acceptable,please contact our sales staffs for consult.  Q4:Can you provide help for technical issues?A:Yes,we have more than 10 years of research and development in the electronic industry. If you need technical help in the purchase process, please feel free to contact us.Q5:About payment?A: Price term of EXW,FOB,CFR,CIF are acceptable.      For bulk order, 50% deposit and 50% balacne before shipment.Q6: What is your lead time?A: Small order, we can finish with 5 or 7 days;      Bulk order, we can finish with 7 to 20 daysContact with us for more info. Tks. Click above "Contact Us" button to tell us your requiremnet   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
