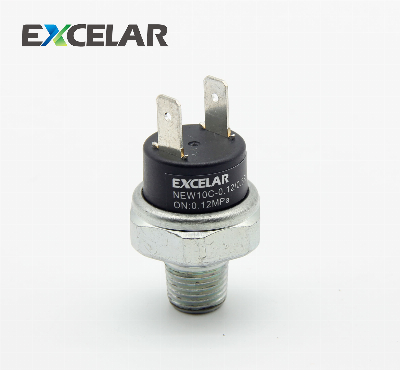

Air Pressure Sensor for Compressor

Features:   > Complied with IEC60730, UL508> Complied with Rohs 2.0> Mechanical life-spam: >100000 timesDescription: The NWS10A series pressure switch is auto reset designed switch, capable with wide range of pressure set up, and for universal applications. It is applied to pneumatic and hydraulic control purpsoes, such as electric refrigerating equipment, indoor air-container or cooling equipment, and their internal wiring operation control, distancing outdoor condensing apparatus operation control. Applications: safety apparatus, air-conditioner, refrigerating equipment etc. Code guideNWS10A - 1 1 1 1 - 145-175psi              A B C DPressure parameter:Resetting pressure 145psi(customized) Actuating pressure 175psiRemarks:Indifferent pressure is available, it means reset pressure and actuating pressure could be similar value   CodePoleConnector MaterialConnector TypeConnection Type0////1A 1P - NCB BrassC 1/8NPTD 6.35x0.8 mm21P - NOStainless Steel1/4NPT4.8x0.8 mm31P - 2 Way NO/NC/R1/818AWG Cable4//R1/4/5//G1/8/6//G1/4/7//1/4 Copper Tube/8//7/16UNF External Thread/9//7/16UNF Internal Thread/10//7/16UNF Internal Thread & Spool/Technical parameter:ModelNWSMediaAir,water,refrigerant,motor oil,lube and other similar hydrocarbonPressure range/deviation/pressureActuating pressure (MPa)Default tolerance(Mpa,customized)Pressure(MPa)0.02~0.6(Low pressure)±0.051.50.5~1.0±0.073.51.1~2.0±0.14.52.1~3.0±0.153.1~4.5±0.15Specification:Burst pressure5000psiTemperatureEnvironment temperature: Low pressure -30~65ºC, High pressure -35~120ºC; Media: -50~120ºCPole1P 1Way (1NC/1NO), 1P 2-WayElectric ratings120Vac 6FLA, 40.2LRA; 240Vac 4FLA, 26LRA120/240Vac 375VA; 35Vdc 3AMechanical life-spam>100000Connector typerefer to code guideElectrical connection6.35*0.8, 4.8*0.8; wiring connection(wire length and plug are customzied)Workshop:High-frequency Welding Machine                                                         Automatic Gule Injection Machine  Laser Welding Machine    /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
