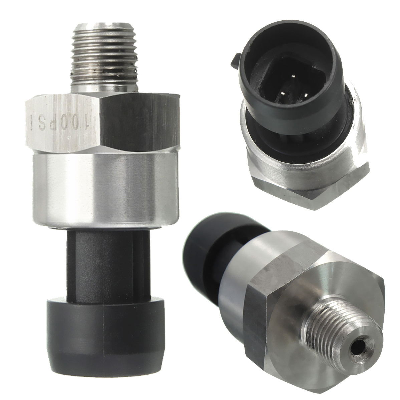

Pressure Transducer Sensor De Presion for Oil Fuel Air Water

1/8 NPT Oil  fuel Air Ride Suspension Air Compressor  Pressure SensorProduct DescriptionFeatures1.Suitable for wall hanging furnace, gas furnace, gas storage, etc all kinds of hydraulic, pneumatic pressure measurement2.Suitable for civil use product batch3.Static accuracy: plus or minus 1.0% FS4.Pressure range 0-0.5 MPa (can be customized according to customer requirements)5.Wide range of temperature compensation6.Medium for non-corrosive gas, water, oil, etc7.Original imported chip8.Stainless Steel ShellProduct specificationsSpecifications:Material: Stainless steelVoltage: DC 5VPressure: 30 psi, 100 psi, 150 psi, 200 psi, 300 psi, 500 psi (Optional)Please leave a massege,tell me what type you want,or we will send by random.Thread Type: 1/8" NPT30 psiInput: 0-30 psiOutput: 0.5V~4.5V linear voltage output. 0 psi outputs 0.5V, 15psi outputs 2.5V, 30 psi outputs 4.5V.Accuracy: within 2% of reading (full scale).Thread: 1/8"-27 NPT.Wiring Connector: Water sealed quick disconnect. Mating connector is included.Wiring: Red for +5V; Black for ground; Blue for signal output.100 psiInput: 0-100 psiOutput: 0.5V~4.5V linear voltage output. 0 psi outputs 0.5V, 50 psi outputs 2.5V, 100 psi outputs 4.5V.Accuracy: within 2% of reading (full scale).Thread: 1/8"-27 NPTWiring Connector: Water sealed quick disconnect. Mating connector and wire harness (pigtail) is included.Wiring: Red for +5V; Black for ground; Blue for signal output.150 psiInput: 0-150 psiOutput: 0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 75 psi outputs 2.5V, 150 psi outputs 4.5VAccuracy: +/-0.5%FSThread: 1/8" NPTWiring: Red for +5V; Black for ground; Green for signal outputOverload Capacity: 2-4 times of rated pressureWorking Temperature: -40°~+120°Compensation Temperature: 0°~+80°Protection Class: IP67Pressure Medium: Oil, gas and water which is compatible with 316L stainless steelLoad Resistance: ≤(supply power-6.5V/0.02A)ΩLong-term Stability: Less than 0.1%FS/yearTemperature Effect on Zero: Typical:0.02%FS/°; Maximum:0.05%FS/°Temperature Effect on Sensitivity: Typical: 0.02%FS/°; Maximum: 0.05%FS/°Shock Resistance: 1000gAnti-Shock: ≤+/-0.01%FS(X,Y,Z axes, 200Hz/g)Response Time: ≤1msInsulation Resistance: >100mΩ 500VDCExplosion-proof Class: ExiaTTCT6Electromagnetism Compatibility: EN50051-1200 psiInput: 0-200 psiOutput: 0.5V~4.5V linear voltage output. 0 psi outputs 0.5V, 100 psi outputs 2.5V, and 200 psi outputs 4.5VWorking Temperature: -40~+125°Accuracy: ±1%FSThread: 1/8"-27 NPTOverload Capacity: 2 times of rated pressurePressure Medium: Oil, gas and water which is compatible with 316L stainless steelLoad Resistance: ≤(supply power-6.5V/0.02A)ΩLong-term Stability: ± 0.2%FS/yearTemperature Effect on Zero: Typical: ±0.02%FS/°; Maximum: ±0.05%FS/°Temperature Effect on Sensitivity: Typical: ±0.02%FS/°; Maximum: ±0.05%FS/°Shock Resistance: 100gAnti-Shock: ≤±0.01%FS(X,Y,Z axes, 200Hz/g)Response Time: ≤1msInsulation Resistance: >100mΩ 500VDCExplosion-proof Class: ExiaTTCT6Electromagnetism Compatibility: EN50081-1; EN50082-2; IEC6 1000-4-3Wiring Connector: Water sealed quick disconnect. Mating connector and wire harness (pigtail) is included.Wiring: Red for IN+; Black for GND; Green for OUT.300 psiInput: 0-300 psiOutput: 0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 150 psi outputs 2.5V, 300 psi outputs 4.5VAccuracy: +/-0.5%FSThread: 1/8" NPTWiring: Red: +5V; Black: ground; Green: signal outputOverload Capacity: 2-4 times of rated pressureWorking Temperature: -40~+120°Compensation Temperature: 0°~+80°Protection Class: IP67Pressure Medium: Oil, gas and water which is compatible with 316L stainless steelLoad Resistance: ≤ (supply power-6.5V/0.02A)ΩLong-term stability: Less than 0.1%FS/yearTemperature Effect on Zero: Typical: 0.02%FS/°; Maximum: 0.05%FS/°Temperature Effect on Sensitivity: Typical:0.02%FS/°; Maximum:0.05%FS/°Shock Resistance: 1000gAnti-Shock: ≤+/-0.01%FS(X,Y,Z axes, 200Hz/g)Response Time: ≤1msInsulation Resistance: >100mΩ 500VDCExplosion-proof Class: ExiaTTCT6Electromagnetism Compatibility: EN50051-1.500 psiInput: 0-500 psi (Gauge Pressure)Output: 0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 250 psi outputs 2.5V, and 500 psi outputs 4.5V.Accuracy: +/-1%FSThread: 1/8" NPTWiring: Red for +5V; Black for ground; Yellow (Green) for signal outputOverload Capacity: 2-4 times of rated pressureWorking Temperature: -40°~+120°Compensation Temperature: 0°~+80°Protection Class: IP67Pressure Medium: Oil, gas and water which is compatible with 316L stainless steelLoad Resistance: ≤ (supply power-6.5V/0.02A)ΩLong-term stability: Less than 0.1%FS/yearTemperature Effect on Zero: Typical: 0.02%FS/°; Maximum: 0.05%FS/°Temperature Effect on Sensitivity: Typical: 0.02%FS/°; Maximum:0.05%FS/°Shock Resistance: 1000gAnti-Shock: ≤+/-0.01%FS(X,Y,Z axes, 200Hz/g)Response Time: ≤1msInsulation Resistance: >100mΩ 500VDCExplosion-proof Class: ExiaTTCT6Electromagnetism Compatibility: EN50051-1.Detailed Photos    MORE SUSPENSION PARTS
