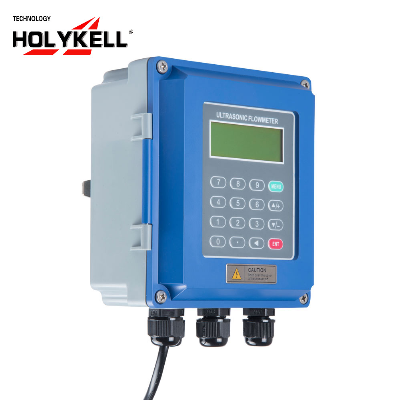

Flow Measuring Devices Ultrasonic Sea Water Flow Sensor

Flow measuring devices ultrasonic sea water flow sensorIntroduction of Flow measuring devices ultrasonic sea water flow sensorFlow measuring devices ultrasonic sea water flow sensor is designed to be installed in a fixed location for long-term flow measurement. Ultrasonic flow meter is designed to measure the fluid velocity of liquid within a closed conduit. The transducers are a non-contacting, clamp-on type, which will provide benefits of non-fouling operation and easy installation. Transit-time flow meter utilizes two transducers that function as both ultrasonic transmitters and receivers. The transducers are clamped on the outside of a closed pipe at a specific distance from each other. The transducers can be mounted in V-method where the sound transverses the pipe twice, or W-method where the sound transverses the pipe four times, or in Z-method where the transducers are mounted on opposite sides of the pipe and the sound crosses the pipe once. This selection of the mounting method depends on pipe and liquid characteristics. The flow meter operates by alternately transmitting and receiving a frequency modulated burst of sound energy between the two transducers and measuring the transit time that it takes for sound to travel between the two transducers. The difference in the transit time measured is directly and exactly related to the velocity of the liquid in the pipe.Specs of Flow measuring devices ultrasonic sea water flow sensorProducts nameFlow measuring devices ultrasonic sea water flow sensorMain unitAccuracyBetter than ±1%RepeatabilityBetter than 0.2%PrincipleTransit-time measuring principleMeasurementPeriod500msDisplayLCD with backlight, display accumulated flow/heat, instantaneous flow/heat, velocity, time etc.OutputAnalogue output: 4-20mA or 0-20mA current output. Impedance 0∼1kW. Accuracy 0.1%.OCT output: Frequency signal (1~9999HZ)Relay output: over 20 source signal (no signal, reverse flow etc.)RS485 serial port InputThree analogue inputThree-wire PT100 resistor input (optional)Other functionsAutomatically record the totaliser data of the last 64 days / 64 months / 5 years;The power-on time and corresponding flow rate of the last 64 power on and off events. Allow manual or automatic flow loss compensationThe instrument working status of the last 64 dayspipematerialSteel, stainless steel, cast iron, cement pipe, copper, PVC, aluminum, FRP etc. Liner is allowedSize15-6000mmStraight pipe sectionIn the upstream it must be beyond 10D, in the downstream it must be beyond 5D, in the upstream the length must be beyond 30D from the access of the pump. (D stands for pipe diameter)LiquidTypesWater, sea water, industrial sewage, acid & alkali liquid, alcohol, beer, all kinds of oils which can transmit ultrasonic single uniform liquidTemperatureStandard: -30C - 90C ,High-temperature:-30C - 160CTurbidityLess than 10000ppm, with a little bubble Flow DirectionBi-directional measuring, net flow/heat measuringEnvironmentTemperatureMain Unit: -30C - 80CTransducer: -40C -110C, Temperature transducer: select on enquiryHumidityMain Unit: 85% RHTransducer: water-immersible, water depth less than 3mCableTwisted Pair Line, standard length of 20m, can be extended to 500m (not recommended); Contact the manufacturer for longer cable requirement.RS-485 interface, transmission distance up to 1000mPower SupplyAC220V or DC24VPower ConsumptionLess than 1.5WProtocolsMODBUS, M-BUS, Fuji extended protocol and other factory protocolYou will benifit from our Holykell ultrasonic flow meters as followings:1.Saving money  Measuring precision,long lifetime 2. Low costThe cost is lower than the other models out there contact us  3. Less maintenanceNo moving parts, maintenance-free4.Widely used  Wide range of norminal diameters DN32mm  to DN1000mm  .Cellphone (wtsapp): +86-18684725345 /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
