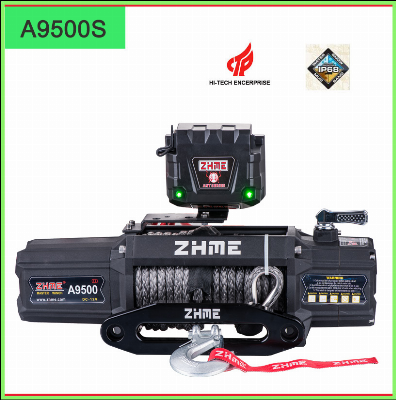

9500lbs Ce Cetificated Waterproof Winches

ANT series Smart appearance is suitable for various vehicles. Strong power, simple operating procedure is easily for enter lever off-roader to control the winch in hostile environment.   • Our products are of well-designed, beautiful appearance and easy to install. • The best choice for off road enter lever off-roader. • Popular series winches with good quality at a reasonable price. • 12V volt high performance series wound motor for power and fast line speed. • Fully independent and automatic braking ensures safety and reliability. • High-efficiency, lower noise steel 3-stage planetary gears. • Aircraft grade wire rope, or synthetic rope is optional. • Remote switch & wireless remote control being alternative. • Multifold mounting options including vertical over tie rod, over tie rod and over motor. Rated line pull:9500 Lbs (4310kgs) single line.Motor:Series wound 5.5 hp /4.1kw,12V DC Gear Train:3 stage planetary Gear ratio:218:01:00 Clutch:Sliding ring gear Braking action:Automatic in the drum Fairlead:4-way Roller fairlead Wire rope:7.8mmX28m Synthetic rope9.5mmX26mDrum size:2.5"×8.9"(63mm×226mm) Dimensions:21.5"×6.3"×7.6"( 545mm×160mm×194mm) Mounting bolt pattern:10"×4.5"(254mm×114.3mm) BatteryRecommended 650 CCA minimum for winching 25 square mm,72″(1.83m)N.W:81.4lbs (37kgs)           PERFORMANCE      Line speed and motor current (first layer)Line pullLbs020004000600080009500Kgs09071814272236294310Line speedFPM25.61611.99.799.27.2MPM7.84.883.632.982.52.2Motor currentAmps80130190240280350   Line pull and cable capacityLayer of cable1234Rated line pull per layerLbs9500800072006600Kgs4310362932662994Cable capacity per layerFt.19.6437292M613.22228How to choose a ZHME Winch for your vehicle  Can't decide which winch is right for you? The best way to choose is to calculate the line pull needed for the application. To do this multiply your vehicle's Gross Vehicle Weight (GVW) by 1.5 - this will give an approximation for how big your winch should be. Typically, the first layer of rope around the drum is the max load the winch is capable of. Each additional layer deducts about 10% off the rated line pull. So for a winch rated 9,500lbs, the second layer will pull 8,550lbs, the third 7,700lbs, etc. A loss of pulling power can also be experienced when the rope isn't spooled evenly on the drum. So re-spool your winch before you go out!/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
