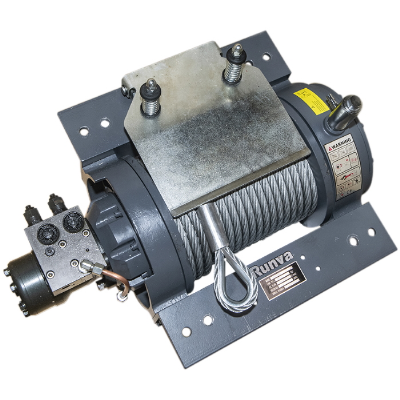

Tow Truck Hydraulic Winch 8t Hwh080 for Road Recovery Wrecker Vehicle

Tow Truck Hydraulic Winch 8T HWH080 For Road Recovery Wrecker Vehicle HWH080(HWH080II)Rated tension 8000Kgs (8T)Working speed 4m/minRope capacity 32mSpecification of steel wire rope Φ 14*32mNumber of steel wire rope layers threeRated pressure 15MpaRated flow 50L/minMotor displacement 65ml/LReduction ratio 38:1Installation hole spacing 300mm * 380mm * 386mm 8-m14 boltOverall dimension(length * width * height) 665mm*486mm*370mmNet weight 130KgОсновные характеристики гидравлической лебедки Runva HWH080:Тяговое усилие17600 lbs / 8000 кгРабочий объем мотора125 мл/обДавление15 МПаРедуктордвухступенчатый планетарныйПередаточное отношение38 : 1Расход масла15~50 л/минТип, размер тросасталь, 14 мм x 32 метраРазмер барабанадиаметр 63 мм, ширина 223 ммУровень защитыгерметичное исполнениеПосадочный размер300 x 380 x 386 мм, 8 болтов М14Габаритные размеры (Д x Ш x В)665 x 486 x 370 ммВес лебедки130 кгBrand model Runva Runhua brand 20t winch obstacle removal vehicleRUNVA HWE200 WITH STEEL CABLE  Rated Line Pull: 44,000LB (20,000KG)  (HWE200S) HWE200Rated tension 20000Kgs (20T)Working speed 6m/minRope capacity 50mSpecification of steel wire rope Φ 26*40mNumber of steel wire rope layers  5Rated pressure 17MpaRated flow 120L/minMotor displacement 315ml/rReduction ratio 36:1Installation hole spacing 532mm * 160mm * 280mm 8-m20 boltOverall dimension(length * width * height) 1158mm*512mm*420mmNet weight 380Kg FOB$4500~$5800USD  RUNVA HWE150 WITH STEEL CABLEHWE150Rated tension 15000Kgs (15T)Working speed 6m/minRope capacity 55mSpecification of steel wire rope Φ 22*40mNumber of steel wire rope layers 5Rated pressure 17MpaRated flow 120L/minMotor displacement 250ml/rReduction ratio 40.6:1Installation hole spacing 522mm * 180mm * 280mm 8-m20 boltOverall dimension(length * width * height) 1030mm*500mm*415mmNet weight 300Kg FOB$3800~$4500USD10t Winch Obstacle Removal Vehicle Mounted10t Winch Obstacle Removal Vehicle MountedHWE100Rated tension 9800Kgs (10T)Working speed 7m/minRope capacity 60mSpecification of steel wire rope Φ 18*40mNumber of steel wire rope layers 4Rated pressure 17MpaRated flow 60L/minMotor displacement 200ml/rReduction ratio 37.8:1Installation hole spacing 522mm * 180mm * 280mm 8-m20 boltOverall dimension(length * width * height) 665mm*486mm*370mmNet weight 130KgFOB$2500~$3200USD   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
