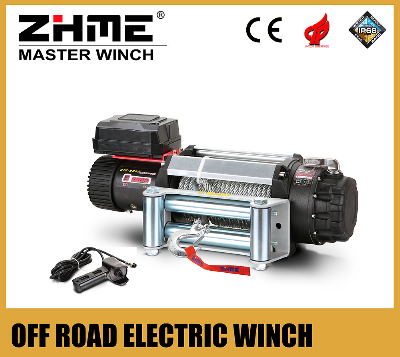

12 Volt 9500lbs Front Bumper Winch with Wire Rope

12 Volt 9500lbs Front Bumper Winch with Wire Rope Features:  1.12V volt high performance series wound motor for power and fast line speed  2. Low-profile design will fit suv, offroad, jeep and so on  3. Durable, smooth, and reliable three-stage planetary gear train 4. Patent braking system is good for your winch. 5. Genuine revolutionary innovation water proof winches completely sealed. 6. Aircraft grade wire rope, or synthetic rope is optional. 7. Remote switch & wireless remote control being alternative. 8. Our products are of well-designed, beautiful appearance and easy to install. Specification:   Rated line pull: 9500Lbs (4310kgs) single lineMotor:Series wound 6.0 hp /4.4kw,12V DCGear Train:3 stage planetaryGear ratio: 262:1Clutch:Sliding Ring gearBraking action:Automatic in the drumFairlead:Roller fairlead for wire ropeWire rope:11.5mm ×26mDrum size:2.5"×9.0"(63mm×224mm)Dimensions: 23"×6.7"×8.4"( 552mm×170mm×214mm)Mounting bolt pattern:10"×4.5"(254mm×114.3mm)Battery:Recommended 650 CCA minimum for winching 25 square mm,72"(1.83m)N.W: 93 lbs (42kgs)Packing:620mmx200mmx390mm(400pcs per 20' container)Line speed and motor current (first layer)Line pullLbs02000600080009500Kgs0907272236294310Line speedFPM29.513.59.27.56.7MPM94.12.82.32.1Motor currentAmps70120170220300Line pull and cable capacity Layer of cable1234 Rated line pull per layerLbs9500807072506600 Kgs4310366032892994 Cable capacity per layerFt.17.740.767.998.4 M5.412.420.728   Shipping Service: We can arrange you transportation, we have our own shipping and express company, or we can use your forwarder.   How to choose a ZHME Winch for your vehicle     Can't decide which winch is right for you? The best way to choose is to calculate the line pull needed for the application. To do this multiply your vehicle's Gross Vehicle Weight (GVW) by 1.5 - this will give an approximation for how big your winch should be. Typically, the first layer of rope around the drum is the max load the winch is capable of. Each additional layer deducts about 10% off the rated line pull. So for a winch rated 9,500lbs, the second layer will pull 8,550lbs, the third 7,700lbs, etc. A loss of pulling power can also be experienced when the rope isn't spooled evenly on the drum. So re-spool your winch before you go out!     /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
