3000lbs 12V Electric Anchor Winch for ATV

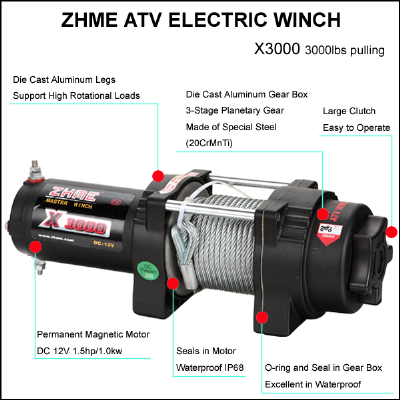

Features: Motor: High performance permanent magnetic motor, provides fast line speed. Contactor: 200 Amp Rated contactor, 12V DC. Gear Box: Reducednoise, waterproof, and dependable. 3 stage planetary gear of 20CrMnTi, hardened gears for long life, a solid power multiplier. Brake: Fully independent and automatic braking ensures safety and reliability. Waterproof: Seals for motor and gear box, o-ring for gear box, Cold drawn steel tube, high strength could protect wire rope well and no damage when braking. SpecificationsItemX3000Rated Line Pull3000lbs(1361kgs) single lineMotorPermanent magnetic motor1.5hp/1.0kw DC 12VGear Train3 stage planetaryGear Ratio198.: 1ClutchSliding Ring gearBraking ActionAutomatic in the drum,independent mechanical brakeFairlead4-Way Roller FairleadSynthetic Rope4.8mm x 12mDrum Size50mm x 76.5mmDimensions334mm x 114mm x 120mmMounting Bolt Pattern165mmX76mmN.W.11kgsPacking:440mm x 250mm x 220mm, (1000pcs per 20' container)/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
