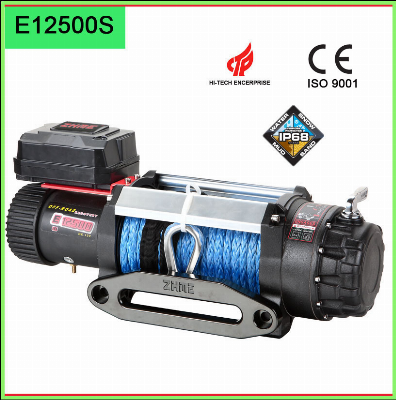

12500s Webbing Ce Cetificated Electric Winch

12500S WEBBING CE CETIFICATED ELECTRIC WINCH Genuine revolutionary innovation waterproof winches completely sealed, heavy duty pulling, really perfect winch for serious off-roader. Suit for heavy trucks , suvs and jeeps.   All sealed high performance motor delivers superior torque output and faster line speed. The brand new heavy - duty sealed contactor with silver alloy contacts allows higher duty cycle. ZHME patented oil seals with double lips fixed on drum supports for waterproof. Automatic full load brake. Oversized tie rods strut for maximum strength. Laser your logos freely. Aluminum alloy clutch lever makes the operation easily.  Revolutionary 3-stage Planetary Gear System for ultimate strength and quiet operation. Different gear ratio for options. Steel bushing prevents the gear box cover from grinding by end of driven shaft. Knurled drum special for synthetic rope. IP68   SpecificationsRated line pull:12500lbs (5670kgs)single lineMotor:Series wound 6.0hp/4.4kw,12V DC8.1hp/6.0kw,24V DCGear train:3stage planetaryGear ratio:262.:1Clutch:Sliding ring gearBraking actionn:Automatic in the durmFairlead:Aluminum hawse fairlead Synthetic rope:ø11mm×24mDurm size:(64mm×254mm)Dimensions:(577mm×170mm×197mm)Mounting bole pattern:10"×4.5"(254mm×114.3mm)Battery:650 CCA minimum for winching 25 square mm,72"(1.83m)N.W:75lbs(34kgs)Packing:620mm×200mm×390mm(400pcs 20'container)Line speed and motor current (first layer)line pullLbs02000400080001000012500Kgs09071814362945365670Line speedFPM25.612.58.97.36.46MPM7.83.82.722.241.961.8Motor currentAmps65100130200250290Line pull and cable capacityLayer of cable 1234  Rated line pull per layerLbs125001075094608040  Kgs5670487642903647  Cable capacity per layerFt.15.736.461.378.7  M4.811.118.724     /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
