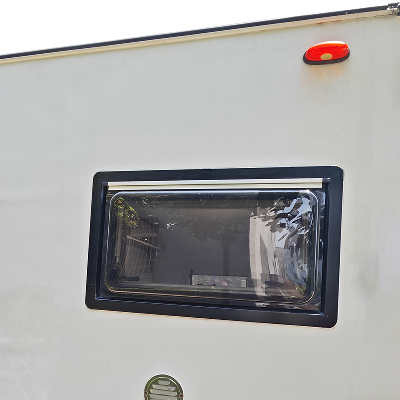

RV Window Wholesale Right Angle Aluminum Frame Glass Awning Window with Curtain

Product DescriptionThis right-angle RV window features push-out acrylic glass that opens to 70 degrees with telescopic struts for maximum ventilation in your RV. Features: 1. The right-angle RV window consists of an Aluminum or ASA outer frame, an ABS inner frame, and double-glazed anti-UV acrylic glass 2. Max. opening angle: 70 degrees, and it can be fixed at different positions with the adjustable support rod. You can also choose fixed struts with this awning caravan window 3. Easy-to-quick clamping installation 4. Fitted wall thickness: 25-35mm 5. Equipped with fly screen and blackout roller blind with aluminum coatingFunctions: Ventilate, insulate, provide privacy, allow sunlight in, prevent insects, and good water seal. It can act as an emergency exit when the screen and blind are unlocked and the window opens. Applications For all kinds of RVs, modified cars, flat surface buildings, etc. Product ParametersOrdering Size (W*H, mm)Overall size (W*H, mm)Cut-out size (W*H, mm)Corner Radius  ( R )Clear Opening (W*H, mm)350 × 280380×310350×2807mm228×158500 × 350530×380500×3507mm378×228350 × 500380×530350×5007mm228×378500 × 450530×480500×4507mm378×328450 × 500480×530450×5007mm328×378500 × 500530×530500×5007mm378×378600 × 600630×630600×6007mm478×478700 × 400730×430700×4007mm578×278800 × 500830×530800×5007mm678×378900 × 450930×480900×4507mm778×328900 × 500930×530900×5007mm778×378900 × 550930×580900×5507mm778×428900 × 900930×930900×9007mm778×7781000 × 5001030×5301000×5007mm878×3781000 × 6001030×6301000×6007mm878×4781000 × 8001030×8301000×8007mm878×6781100 × 4501130×4801100×4507mm978×3281100 × 5501130×5801100×5507mm978×4281200 × 3501230×3801200×3507mm1078×2281200 × 5001230×5301200×5007mm1078×3781200 × 7001230×7301200×7007mm1078×3781450 × 5501480×5801450×5507mm1328×428When ordering a RV window please specify wall thickness to ensure the window fit for your RV.Packaging & Shipping  Other MAYGOOD ProductsCertificationsWhy Choose MAYGOOD* MAYGOOD has advanced imported equipment and a Factory Management system that can guarantee the factory works efficiently. * We have strict quality control and have passed the Quality Management System Certificate  * 100% customer satisfaction is our goal so we provide excellent after-sale service and every product enjoys a 12-month factory warranty after you receive it.  * With more than 14 Years of exporting experience, you don't need to worry about your import process. The MAYGOOD team will spare no effort to help you solve any problems. * We have cooperated with the world's largest RV spare parts company for 13 years. Our products also were exported to major North America, Europe, South America, the Middle East, etc. * Any query will be responded to within 12 hours.    FAQ  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
