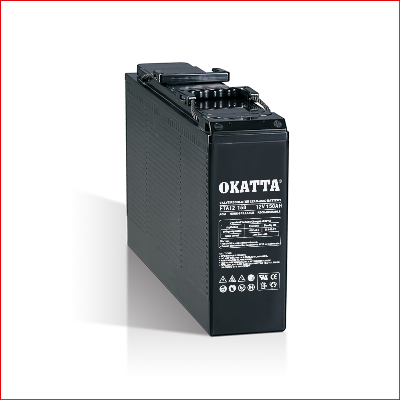

FTA12-150 VRLA Lead Acid Front Terminal Telecom Standby Battery 12V150ah

TECHNICAL INFORMATIONBattery Model No.:   FTA12-150Nominal Voltage:12VCapacity(10hr@25°C):150Ah Length[mm]550Width[mm]110Height[mm]288Total Height [mm]288Weight(Kg)47.0Design Floating Life @25°C >10 yearsSelf Discharge Rate:≤ 3%/monthOperation Temperature:-20~60°CConstant Charge Voltage @25°CCycle14.5-14.9VFloat13.6-13.8V  ComponentPositive plateNegative plateContainerSafety valveTerminalSeparatorElectrolyteRaw MaterialLead dioxideLeadABSRubberCopperAGM (absorbent Glass Mat)Sulfuric Acid    Western Electrical FTA and FTG 12V VRLA Front Terminal Batteries : A line of front terminal batteries that specially designed and manufactured for telecom communication station application, come with both AGM and Gel technology, none-spillable, high safety reliability, 10 years floating life design, made in China with manufacturer warranty. The FTA (Front Terminal AGM) series is specially designed for telecom use with over 10 years life design in floating service. By adopting a new AGM separator and centralized venting system, this batteries are featured none-spillable and allowed to be installed in any position with high safety reliability.The FTG(Front Terminal GEL) series come with silicon Gel electrolyte on the basis of FTA series, longer in life design, higher security in leakage , which is better suit forthe variable and complex environment situation.Features: • Capacity range:40Ah-200Ah • Voltage class:12V • Long design life (25°C): over 10 years • Low self- discharge rate:≤3%month • Good high rate discharge performance • High sealed reaction efficiency:≥99% • Wide operation temperature range:-20°C to 60°C   Battery Construction: • Narrow structure: each cell has same heat dissipation efficiency, thus effective to prevent "terminal runaway". • Plate: Pasted flat type.  • Centralized vent system: battery internal gas can be vented out of the system and flame arrester is equipped.  • Terminal cover: avoiding short circuit and dust, the inspection hole is available for maintenance. • Separator: improved AGM separator for lower electric current resistance, higher compression pressure to increase deep cycle life. • Terminal sealing: double sealing technic.    Batteries Series Specifications:    Main Benefits 1.These two battery series for telecom industry comes with slim shape design and front connection, easy for installation and maintenance, space also can be saved. 2.Radial grid design plus tight assembly technology assures this rechargeable battery prominent high rate discharge performance. 3.Totally maintenance free design makes sure that the electrolyte volume can be hardly reduced during use and addition of water is not necessary during the battery  service life. 4.Long service life due to unique corrosion resistant grid alloy, the power storage cell can serve for more than over 10 years in standby current at a temperature of 25°C. 5.Fully made from high purity materials, the front access AGM battery comes with extremely low self discharge, while the gas recombination technology makes this power supply device environment friendly.   Production & Facilities Overview: Battery Production Process    Typical Applications:    Certifications: Our advantage: Contact US:The future is being built today, and we believe that with the continuous investment on innovation, improvement of production process and insist on customer-oriented service, Western Electrical can make that future more productive,  more secure and more sustainable. Here with Western Electrical, welcome to contact us and get start, of the power for today and the future. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
