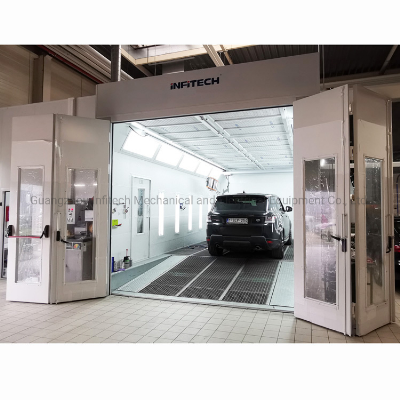

IT-SUPER-L8 Spray Paint BoothCertification: CE Management Certification: ISO9001: 2000 Warranty Time: 2 Years 1.FEATURES & APPLICATION IT-SUPER-L8 painting booth has been developed for customers who want a practical, low cost painting booth, but also require downdraft airflow, low operating cost and high quality paint finish. It is equipped with both intake and exhaust fan (11kw), and heating system. 2.DETAILS AIRFLOW & BOOTH STRUCTURE IT-SUPER-L8 painting booth is standard with full downdraft airflow. It is with convex roof design, 400mm high plenum and 350mm high raised metal basement. 3.HIGHLIGHTS *Downdraft airflow *Efficient generator unit *Easy to use and maintain *Long service time *Lower operating costs 4.SPECIFICATIONS 4.1.Model:IT-SUPER-L8 car painting booth; 4.2.Design standard:BS EN 13355-2016, BS EN 60204-1-2018; 4.3.ParameterAirflowInternal Size(mm)External Size(mm)Heating ModesInlet/Exhaust fanLED Ceiling LightsLED Side lightsEmpty Loaded Air SpeedFull downdraft8000x4000x30008110x5760x4010Diesel/Gas11kw10 sets /4x24W8 sets / 2x24W0.30 m/s4.4.Airflow 4.4.1.Air downdraft for sprayAir downdraft for spray. 4.4.2.Big impeller fan ,sparkproof design (11kw DOMESTIC ). 4.5.Base return air system 4.5.1.Assembly structure can not be adjusted. 4.5.2.Kinds of choice diversified the way of ground exhausting and mist-handling. 4.5.3.Plug in new grid structure, flat contact surface touch, full grids cover the ground, steel grating load 650KG/ wheel, safe and reliable for supporting vehicles. 4.5.4.Laying fiberglass paint-resistance filters on the bottom of grid,G2 Grade, accommodate paint of 6KG/m2. 4.5.5.We support drive-in-ramp, according to the require of customer , we will provide the technology guidance of the base plane embedded beneath the ground zero. 4.5.6.Other form of exhausting and mist-collecting disposal, consult our sale engineer,we will provide the perfect pre-sale service and technical guidance. 4.6.Entrance door 4.6.1.With 2+2structure, 4 observation windows with armoured glass(WXH:3200X2700mm). 4.6.2.Safe door,observation windows with armoured glass. 4.7.Cabin structure 4.7.1.Full grids, 650kg/ wheel. 4.7.2.Heat-resistant rock wood panel,base plate thickness:0.426mm. 4.7.3.With 400mmheight plenum chamber /350mm height basement. 4.7.4.European bulge roof design. 4.8.Heating system 4.8.1.With 315KW high efficient, energy-saving heating exchanger. 4.8.2.Double protection with over temperature. 4.9.Maximum working temperature: 80ºC. 4.10.Lighting system Adopting IP54 protection grade, the light box fully meet EU standards. 4.11.Control system 4.11.1.Basic control panel ,painting ,Heating painting, baking. 4.11.2.This system conforms the EU standard indication EN13355. Configuration painting, heating paint, baking, lighting, emergency stop switch, failure indication, over-temperature alarm indicator and other basic functions. 4.12.Voltage: 380V, 50Hz, 3ph. 4.13.Rated power: 28KW. 5.OPTION:NULL6.FAQ Q1: You are manufacturer? A: Yes. Infitech is professional manufacturer of CE certified paint drying booths. Except manufacturing, we also provide comprehensive service covering design and layout (i.e. complete auto body shop design and layout), technical consultation, installation and maintenance. Q2: OEM is available? A: Yes. Q3: Can you make the painting booth according to my request? A: Certainly. Send your inquiries to us by email. Infitech sales engineer will check and analyze your needs. After making the study, you will be offered a detailed technical solution with illustrative design drawing. Once approved, we will follow it for production. Q4: Can you follow the supplied dimensions? A: Yes. We can customize the design according to your personalized needs. Q5: I look for a paint drying booth for painting and baking furniture (or machanics or hardware parts or other industry product). Can you supply? A: Certainly. Except automotive paint drying booths, Infitech also supplies paint drying booths to the industrial manufacturing industry from small booths to large size industrial booths. Make sure that you send your detailed requests to one of our experts, we will get back to you with more details. Q6: What about the code compliance for the paint drying booths? A: Infitech paint drying booths are CE certified and meet requirements: OSHA, NFPA, HSE etc. Q7:What product quality control measures do you have? A. Product manufacturing and testing have quality record and testing files.Product performance test. Customers will be invited to attend the complete test procedure. Once product is qualified, then to package and delivery. Q8: How can I know and confirm the painting cabin quality ? A: 1) We will send photos or videos of painting cabin projects that have almost same configurations as those of the painting cabin model we quote to you. So you can check the quality on photos or videos. 2) If we have painting cabin installations in your market, we will
