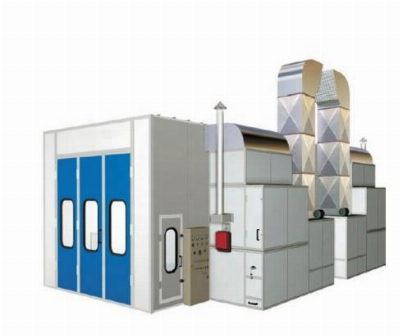

Large Painting Room Truck Spray Room Bus Painting Booth

  OverviewEssential detailsType:Spray BoothsPower35KWExternal Size:12150X6060X3800mmInternal Size12150X6060X3800mmVoltage:220V/380VDisc Dia.StandardNo Load Spee0.35m/sPlace of OriginShandong, ChinaBrand Name:MAGEWarranty:1 years warrantyName:Automotive Spray BoothHeating SystemRIELLO Brand Gas/Diesel Burner/ infared lampsColorCutomizedFiltersHigh Efficiency FilteFans kindCentrifugalLighting SystemLED   Supply Ability Supply Ability   100 Set/Sets per Month Packaging & delivery Packaging Details in wooden case Port qingdao Lead time: Quantity(sets)1 - 20>20Lead time (days)15To be negotiated  SPECIFICATIONS OF STANDARD SIZE CAR SPRAY BOOTHOuter size (mm)12150X6060X3800 (LXWXH)Inner size (mm)12000X4500X3500 (LXWXH)Gate (mm)5000*2570mm (W*H)Personal door (mm)700*1800mmPower35kwVoltage380v/3ph/50hz or customizedCabinet systemWall panelRock wool panel steel skin board,50 mm thick,75 mm thick, steel 0.5 mm thick, tongue & groove style, compound construction, anti-flame and heat-insulation.BasementWithout basement. Cement floorEntry doorFolding door, 3pcs, size 5000mm(W)*2470mm(H), with 5mm thick tempered glass window.Personal doorSize 650mm(W)*1700mm(H), with 5mm thick tempered glass window. (There is a pressure lock on the door, which will automatically open when the indoor air pressure is too large.)Air circulation systemIntake fanCapacity: 12,000 m3 /h each fan; Power:4.0 kw; Quantity: 4 sets.Exhaust fanCapacity: 20,000 m3 /h each fan; Power:7.5 kw; Quantity: 2 sets.Fan cabinetFan cabinet made by painted sections and powder-coated steel plate;the ex- haust duct made by high-quality galvanized steel, and professional flange.Roof systemBeamMade by 40*60 galvanized square pipe, with supporting; and also 40*40mm angle iron connected by rivet.2-layer structureThe plenum made by galvanized steel, powder-coated on the surface. The roof filter support frame made by 25*25 and 15*15 galvanized square tubes, powder-coated on the surface.Generator settingGenerator settingIntake air from side upper direction, exhaust air from rear side direction, quadrate steel frame, outside is white coated steel, inside is galvanized steelPurfication systemIntake filterIntake filter is high quality imported filter, could capture the articles larger than 10μm.Celling filterHigh efficiency filters made in Italy, could capture the articles larger than 5μm.Side filterThe floor filter is fiberglass filter, TSP≤14mg/m³.Heating systemDiesel heating system2 units Riello Brand G20 diesel burner, Maximum heat productivity 400,000 Kcal/h, 2 pcs SUS304 stainless steel heating exchanger, max temp:80 ºC , heating time: 10-20 min (20-60ºC).Lighting systemCeiling lightCeiling Lights: 16Unitsx4pcs=64Pcsx 16w; Side Lights: 10 Unitsx3Pcs=30Pcsx16w Vertical (there are 4 units on left side, 4 units on right side, 2 units on rear side)Control systemSwitched Control PanelButton type control box, with main switch Spraying & baking switch, lighting switch, emergency stop, Breakdown alarm, temperature timer, time accumulator etc.FAQQ. How do you control your quality?A. Our factory is ISO/ CE certified. We have our own QA and QC team. They will check on site and finished products to ensure all details to meet our highest standard and the customer's requirements.Q: May I know the Lead time?A:The lead time of our machine is 7-15 days. When you order more, we need to check the production schedule.   Q: What is the regular color? May I order a special color I like? A: The regular color is Blue, Orange, White, Red. Also we can do customize one for you.   Q: Can you supply OEM service? A: Yes, we can, some customers prefer that use their Logo, their color. And we are glad to help them open their market.   Q: What is the warranty time? A: Warranty time is 12 months. Parts have free replacement when damaged during this time./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
