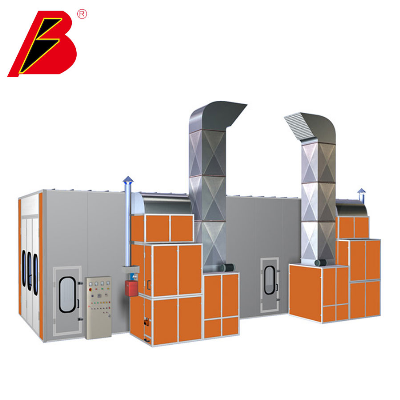

European Standard Automobile Refinish Bus Truck Spray Paint Booths

We can manufacture bus spray booth to your specific requirements,Follow specification 18m for reference   BZB-FB(18x5x5) Spray Booth SpecificationInternal Size (mm)(L×W×H)18000×5000×5000External Size (mm)(L×W×H)18156×8656×5800Front Door1.    One set 4 folds main entrance door, one middle folding door, Double panels δ=0.476mm with 75mm EPS insulation, size (W×H): 4000 ×4500mm, thickness75mm. 2.    These doors were made by bending method which is rigid and strong. The door sight glasses were rectangle and rounded corner design,6.0mm tempered glass.Service DoorFour sets, size(W×H): 800*2000mm, with emergency lock. Adopt stainless hinge. The door sight glasses were rectangle and rounded corner design.Cabin1.    Wall panel: Double panels δ=0.476mm with 75mm Rock-wool  insulation; 2.    Ceiling board: 0.8mm galvanized plate; 3.    Cabin frame is use galvanized steel sheet.Exhaust wayTwo Sides exhaust. Size 13800×1828×1000mm(L×W×H) per side.Ventilation Unit3 units of Ventilation Unit. 1.    Ventilation cabin made by coating steel plate, inside cover galvanized steel sheet,filled in rockwool. 2.    One unit Ventilation Unit including: Air intake unit: 2*5.5kw YDW-5.6S Fan. Unit Capacity 16000m³/h. Total 6sets 96000m3/h, with pre-filter; Air extract unit: 1*11kw 4-82-6.3E, motor outside, belt drive. Capacity 30408 m³/h. Total 3 sets 91224m3/h. With exhaust filter and active carbon, with three sets of manual damper.Ducting1.    Air exhaust duct made up of good qualitygalvanized steel sheetand flange made by profession equipment. 2.    Total Straight duct: 15meters high and 3 sets manual damper, Elbow bend 3 PCS.Heating system1.    The heat converter is made of stainless steel material. 2.    3 sets Diesel burner. The burner is imported from Italy under the brand name: RIELLO Model RG5S. Heating capacity: 260,000Kcal/h; Total capacity: 780,000Kcal/h. 3.    3 sets Switzerland original electric damper can automatically achieve from spraying to baking cycle.Filtration systemThe high efficiency primary filter can capture granules larger than 10μm, ceiling filter imported from Italy capture granules larger than 5μm, floor filter is M type glassfiber filter. TSP≤1.4mg/m3, exhaust cabin have glassfiber filter and activated carbon filtration.IlluminationCeiling light: 22sets*4pcs=88pcs 36w lamp, bottom light: 26sets*2pcs=52pcs 36w Philips tri-phosphor tube lamp, 1000 Lux. Ballasts Professional and durable.Electrical control unitButton type, main components and parts are Schneider with CE certificate , Lighting switch, spraying, risen-temperature spraying, baking, baking temperature, time setting, failure indicator, temperature controller, temperature limit controller, emergency stop, breakdown alarm.Optional2 sets motorized Personnel lifts on 2 sides of the booth. Platform Load 150KG. Lift height 500-3500mm. Lift cross direction: 900-1200mm Lift length wise direction: 17000mm The motorized Personnel lift system is including the control boxes.No-load air Speed≥0.28m/sHighest temperature80Voltage380V, 50Hz, 3phaseTotal power71+6KW                 /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
