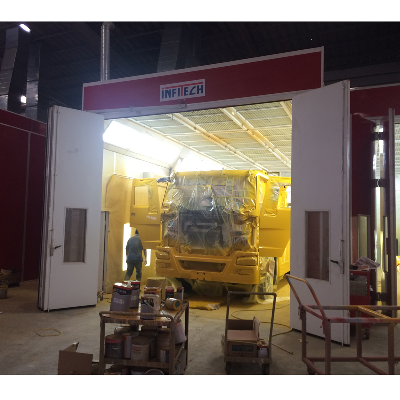

It-13m Infitech Professional Bus Truck Automobile Water-Based Painting Room

INFITECH professional bus truck automobile water-based painting roomProduct OverviewTechnical parameters   INFITECH professional bus truck automobile water-based painting room Design standard BS EN 13355: 2004 + A1: 2009  BS EN 60204: 2006 + A1: 2009AirflowDowndraft for spray and cure Internal dimensions13000 x 5000 x 4000mm (L X W X H) External dimensions13160 x 6960 x 4660mm (L X W X H)Plenum height600mm Entrance door1 set, 4270 x 3800 mm (W X H) Personnel door2 sets, 800 x 2000 mm (W X H) Upper lighting18 sets, each 4 X 18W, 1,296W total, LED lamp Lower lighting18 sets, each 2 X 18W, 648W total, LED lamp Brightness >1,000LUX Filters Pre-filter, ceiling filter, floor filter, exhaust filter Air intake Direct-type turbine fan, 2x7.5KW SIEMENS motor Air exhaust Direct-type turbine fan, 2x7.5KW SIEMENS motor Air volume 2 x 28,000m3/h Empty loaded air speed +/-0.24m/s Maximum working temperature 80ºCHeats Diesel burner Controls CE standard control box Rated power 35KWFeatures   Airflow• Downdraft airflow for spray and cure• Controlled airflow ceiling• Special item: water-based paint fast drying systemThe blowers (of the water-based system) take clean air from the top plenum directly, ensuring that the air volume of the booth is kept at 2x28,000m3/h and maintaining the balance of the inlet airflow and outlet airflow.It expedites the air velocity of the internal cycle in the flash and baking phase. The air velocity around the vehicle is greatly accelerated, and the effect of fast drying is achieved.Construction• White pre-coated galvanized steel• Dual-skin insulated panels filled with rock wool, 60mm thick• 600mm high plenum• With grids and pit for extraction ***Pit to be constructed by customerDoors• 4-wing big entry door with anti-sagging means• Personnel door with observation windowHeat• Intake and exhaust motors, 2x7.5kw, SIEMENS motor• RIELLO diesel burnerFiltration• Pre-filter: G3 grade pre-filter bag filter• Ceiling filter: F5 grade filter cotton, Model SP-600G• Floor filter: G2 grade fiberglass paint arrestor filters• Exhaust filter: Simple activated carbon filter mat, M typeControls• PLC controller, pressure gaugeFunctions: Painting, heating painting, flash, baking, lighting, emergency stop switch, failure indication, over-temperature alarm indication, baking delay stop protection, motor over-load and over-current protection, fan and heating system interlockEngineering cases Company InformationGuangzhou Infitech is professional manufacturer of customized European standard spray booths in China. We stick to European standard for spray booth since the business started. What we supply ranges from initial design and layout, technical consultation, manufacturing through to installation and maintenance. We pride ourselves in delivering customized products that suit your customers' individual needs.INFITECH professional bus truck automobile water-based painting room   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
