Car Maker Large Spray Booth

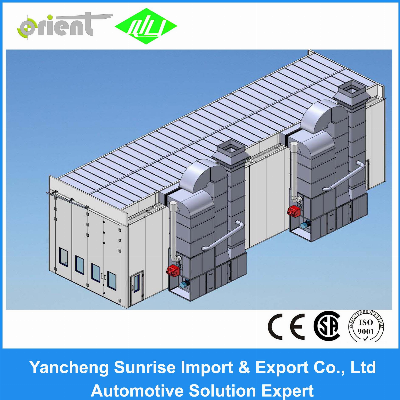

Large industiral spray booth for bus and truck   Construction: Painting cabin with air extractionthrough the floor, ceiling ventilation and intake air heating construction of housing pre-fabricated elements for installation in an existing shed further with working pit arranged in the middle and its ventilation.  Operational modes:  Painting with exhaust air and heated additional air Drying  with circulating air and fresh air componentEffective space: 17,00 meter length   5,00 meter width  5,50 meter height to the under edge of filter ceiling and over edge of housing steel construction approximate 6,38 meter height.   Machine space dimensions:      2 sets of aggregates arranged at the side of spraying booth, each: Approximate    3,73 meter length  Approximate    1,45 meter width  Approximate    2,90 meter height Floor space:                               85 m ²    Volume of effective space:                                     467 m ³    Exhaust air capacity:           2 x 30.000 m ³/h = 60.000 m³/h          Exhaust motor:                      2 x 1 x 11 kW - 960 min -1     Intake capacity:                  2 x 30.000 m ³/h = 60.000 m³/h   Intake motor:                       2 x 1 x 11 kW - 960 min -1   Room over pressure:              Adjustable with 2 regulating flaps, monitored by pressure gauge.Sinking speed:                    Approx. 0,22 m/sec. Without prefabricated part in total room.      Change of air:                    Approx. 128 x/hThermal energy:                    Light oil.Alternatively nature gas or LPG gas as option.Heating of air:              Indirectly via air heater with blower burnerMaximum heat output:              2 x 315 kW = 630 kW            Spray temperature: Approx. 20 - 22° C, optional adjustableUp to approximate 80° C, controllable re-circulated airDrying temperature: Up to approximate 80° C, controllable re-circulated airTemperature regulation:Optional adjustable, regulated automatically,with adjustment of nominal value and digital information of actual value.Temperature control according to DIN 4794   also automatic follower control in order and 3440                                                                                                                                                                            Via temperature regulator and limiting thermostat with lock also automatic follower control in order Exhaust system:Via ground channel under floor, beside the vehicle, Floor grating: Galvanized gratings  wheel loading  1500 Kg  ( 20 x 20 cm )2 channels of each approximate 16,00 x 0,80 meterExhaust air filtering: Via drying separation with non-inflammable disposable filter mats according to DIN 4102Intake air filtering:a)  Through pre-filtering units with intake air u nit  filter class G 3 EN 779 b)  Through ceiling- mounted fine filters with large surface frames for quick changing, CC-600 fine filters, filter class F 5 EN 779 Illumination above:Protective system IP 65  - 3.168 watt  lateral mounted below the filter ceiling Total amount of lamps 22 units, each with 4 x 36 watt Illumination at the bottom:Side wall-lamps - 1.728 watt with total 24 lamps of 2 x 36 watt each for side wall mounting.Gate assembly: One main door for drive in 4,27(W) x 5,38(H) meter2 personnel doors : 0,8(W) x 2,0(H) meter, with windows.Length of connections measured over edge floor:  Exhaust air lines  approx. + 10,00 meter over edge                                                                                              Suction lines   approx. +  8,00 meter over edge Flue pipes VA   approx. +  9,00 meter over edge                                                                                                             ( Depending on the height of hall, perhaps further channels will be necessary. )Connected loads:Approx.  50 kW        Operating voltage:   400 volts, 50 Hz.                                                                                                                       Control voltage:   230 volts, 50 Hz/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
