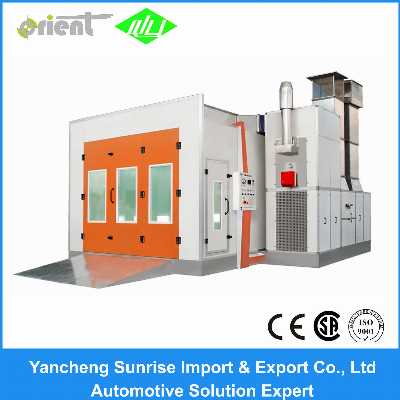

2020 Popular Auto Maintenance Auto Spray Booth (C-400B)

Configuration of  Auto Spray booth C-400B   ModelC-400B (Orient-SR7-4B)   Booth DimensionInside:7000  x 4000 x  2800mm (L x W  x H)mmOutside:7000 x 4120  (5420) x 3600mm (L x W x H)mmBooth SystemEntrance Door:3-fold main entrance door, 3000 x 2700mmPersonnel Door:one personnel door, 800 x 2000mm (WXH)  with pressure latch and automatic door closerWall Panels:Pre-painted steel sheet,                double skinned with 60mm thick  polystyrene insulation  Roof Panels:Pre-painted steel sheet, double skinned with 45mm thick  polystyrene insulationBasement & Floor:300mm high raised metal-base,                            fully arranged grating floorRamps:4 drive in ramps (each 750x2000mm)LightingCeiling light:8 units upper inclined lights,                                each with 4x36w light tubes.                            Side light:6 units 4x36w vertical side wall lights;    Air Makup UnitIntake:air capacity 25000cmh,                                                   1 backward inclined turbo fan        direct drive, 1x7.5kw motor,                               Extract:air capacity 25000cmh,                                      direct drive, 1x7.5kw motor,                                          1 backward inclined turbo fan,      Structure:Aluminum frame structure, colored steel plateBy-pass:Pneumatic damper from spraying to baking cycleHeating SystemBurner:Famous Italy brand Riello RG5S  oil burner,                           capacity 260000Kcal/hHeat exchanger:High efficiency Stainless heat exchangerTemperature:80 degree working temperatureFilter System4 sorts of filters: Pre-filter, ceiling filter, floor paint-stop filter, extract paint-stop filterControl SystemSwitched control box:digital temperature readout, spray and bake temperature settings, bake timer, spray and bake switch, automatic pressure gauge, hour meter, emergency stop, safety thermostat, failure alarm.CASES:/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
