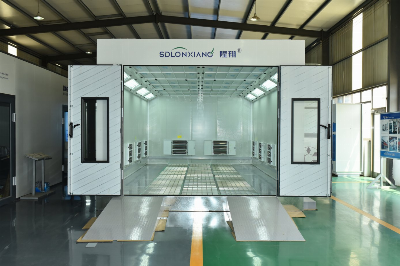

Electrical Heating Spray Paint Booth for Car Workshop

                                                 spray booth         LX-E2Outside size7000×5350×3400mm(L×W×H)Inside size6900×3900×2650mm(L×W×H)Entrance door3 folds,3000x2600 mm(W×H), bending steel door .Emergency door650*2000mm(W*H),equipped with handle lock  Main SystemCabin systemWall panel-Sandwich style EPS 50mm,0.4mm thick steel,  anti-flame and heat-insulation.-High quality galvanized steel roof panel.Basement-Galvanized steel assemble,280mm high,with steel structure support,2 rows grills ,3 rows of diamond plates.-2 ramps,external setting,620*2000mm(W*L)/pcVentilation systemInlet fan1*7.5kw turbo fans, each set air capacity:25000m³/h,Direct drive. Outlet fan1*7.5kw turbo fans, each set air capacity:25000m³/h,Direct drive. Cabinet setting type-Intake air from side upper ,adopt powder quadrate steel frame , strong and beautiful.-Cabinet for the fan*1unit ,air duct*2units. -Elbow:90°*1 unit.Airflow speed On-load speed:0.4m/s,ventilation rate:320 times/hHeating systemElectricAdopt High efficiency short wave infrared lamp, 10 sets of 3KW far-infrared lamp. Maximum operating temperature: 80ºC.Lighting systemCeiling lights8units*4pieces*16w LED LightingSide lightsOptionalFiltering systemPrimary filterGrade G2 plate type , filtering rate>83%Ceiling filterEU5 grade high efficient filter,filtering rate>98%Floor filterMulti-layer fiberglass filter,filtering rate>70%Control systemControl panelIntelligent control systemFunctionLighting, temperature time setting, painting, constant temperature painting, baking,emergency stop, failure indication, etcTotal power46.5 KWVoltage/frequency380V,50HZ,3phase            /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
