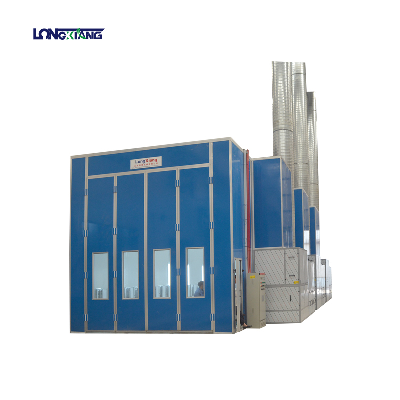

Factory Supply Industry Spray Paint Booth Line

                                                 spray booth       Inside Dimension20000*5000*5000mm(L*W*H)Outside Dimension20144*6896*5600mm(L*W*H)Wall PanelProfiled bar beams in the roof to strengthen the room body,  wall panel thickness:70mm, width:1150mm,tongue and groove structure, with polystyrene(EPS) insulation inside,  colour:whiteDoorsMain door:folding door, 4-folds 4000*4500mm(W*H), with galvanized steel cover frame, with polystyrene(EPS) insulation inside, colour:blueEscape door:2 units, 800*2000mm(W*H), colour:whiteBasementWithout basement,2 rows of pits in the ground for exhaust air,dimension of each pit is 18400*760mm(L*W),with galvanized grilles made by twisted steel and flat bar aboveIntake air system6*7.5KW double-intake centrifugal fans for intake air,model is YDW4.5M,total air capacity is 126000m³/hExhaust air system3*11KW double-intake centrifugal fans for exhaust air, with motor outside, belt-drive,model TAE-710H,air capacity is 108000m³/hDamper actuatesEquip pneumatic damper actuates from spraying to baking cycle,manual damper for exhaust airHeating system3 units RIELLO RG5S diesel burner,stainless steel heat exchanger.Max. heating productivity:780000Kcal/h.Max.working temperature:80ºCFilter systemPre-filter,ceiling filter,exhaust fiberglass filter,activated carbon filterFiltering area84m2Lighting systemCeiling lights:26units*4pcs=104pcs*36WSide lights: 32units*4pcs=128pcs*36W, up and down interleaving installation,  with electronic ballastsControl systemSpraying, heat spraying, baking, time setting, lighting switch, failure indicator,thermostat, power supply switch, emergency stop, ampere meter, voltmeter,hours meter,temperature limit controller,pressure gauge,exhaust reduction voltage motor startTotal power88.5KW             /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
