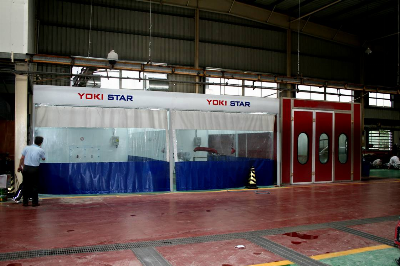

Ample Lighting Mini Spray Paint Booth for Car

Model: YS-200-C Inside dimention: 6300*3450*2700mmL*W*H Any Size Requirements Can Be Met With plenum, intake and exhaust air fan A. Prep stations make it possible for users to prep and perform minor paint work in one area without moving the vehicle. B. Prep stations speed up the drying process and improve the overall quality of your finished product. C. Two airflow choice, above ground exhaust box and pit style downdraft, allow easy integration into new or existing body shop layouts D. Optional heat units are available for high production needs. Warranty The goods are guaranteed for 12 months from the date of receipt, but the filters and lamps are not guaranteed. It cannot be applied for damages caused by negligence of operations or mishandling of the machine. Outside Dimension7550× 3550× 3100mm(L× W× H)Inside Dimension6300× 3450× 2700mm(L× W× H)Plenum Dimension6300× 3450× 400mm(L× W× H)Basementno basement, 2 rows of pits with grilles aboveRoom BodyBack side with 50mm EPS wall panels, the other 3 sides with PVC curtainsLighting SystemCeiling lights 8units× 4pcs=32pcs 36W, with electronic ballasts, 5.0mm clear tempered glass  Generator SettingExhaust air from rear side; galvanized steel molding frame, white coated steel cover        Intake and Exhaust Air System5.5KW double intake centrifugal fan for intake air, 5.5KW double intake centrifugal fan for exhaust air, model YDW-4.5S, air capacity is 15500 m 3 /h, with manual damper for exhaust air  Heating SystemRIELLO G10 diesel burner, stainless steel heat exchanger. Max. heating productivity: 100000 Kcal/hFilter SystemPre-filter, high efficiency filter, exhaust fiberglass filterRoof PlatesGalvanized steel plates        Control SystemFan operation switch, lighting switch, temperature controller, emergency stopSetting StyleSuspending steel hook from roof of building or steel column supporting/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
