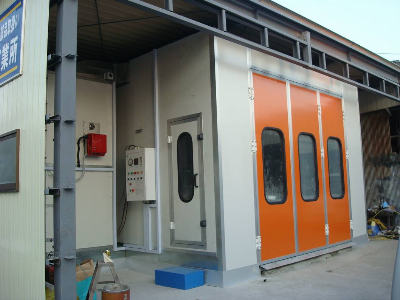

Top-Class Paint Booth for Vehicle

Model: YS-10 Inside dimention: 6900*3900*3400mm L*W*H Any Size Requirements Can Be Met. Cheap, but with direct-drive turbo fan A. During painting, spray booth can offer a sealed environment with cleanness, safety and excellent lighting for the painting operation of all kind of components and different products. B. During baking, drying time, temperature and humidity in spray booth can be set according to different paint materials to achieve a perfect high-quality spraying and baking for your cars. C. Spray booth makes spraying and baking operation with no limits of all kinds of whether, thus ensuring physical fitness of operators and absolute safety of equipments. Warranty The goods are guaranteed for 24 months from the date of receipt, but the filters and lamps are not guaranteed. It cannot be applied for damages caused by negligence of operations or mishandling of the machine. YOKISTAR Products High quality and advanced technology are applied in YOKISTAR product ranges, involving automotive spray booth, bus and truck spray booth, prep station, mixing room, bench spray booth, open face spray booth and infrared curing lamp. Inside dimension6300× 3450× 2650mm (L× W× H  )Outside dimension6400× 4900× 3400 mm (L× W× H  )Main doorF olding door, 2 folds, 2200× 2600 mm  ( W× H  ), made by bending steel without cover frame, , colour: blue.Escape door1 unit, 650× 1800mm  ( W× H  ), colour: white.BasementGalvanized steel assemble, 300mm high, quadrate steel support, 2 rows of grilles made by flat bar and round steel, then painted. 3 rows of indented plates, painted. 2 ramps, external setting, 520× 2000mm/pc.Wall PanelsThickness: 50mm, width: 1150mm, tongue and groove structure, 0.376mm colour steel with 50mm thick polystyrene (EPS) insulation inside, colour: white.Lighting systemCeiling Lights: 8Units × 3Pcs=24Pcs × 36W, with electronic holders, lighting boxes are made by colour steel.Generator settingIntake air from back upper direction, exhaust air from back upper direction galvanized steel molding frame; white coated steel outside, galvanized steel inside, filled with heat preservation material in the middle.Intake and Exhaust air system1× 5.5 KW turbo fan for intake air, power: 5.5KW, air capacity: 18000m 3 /hExhaust air system is optional.Heating systemBT18 diesel burner, stainless steel heat exchanger, pneumatic damper actuates from spraying to baking cycle. Max. heating productivity: 180000Kcal/h.Filtering systemPre-filter, ceiling filter, exhaust fibreglass filter.Roof PlatesGalvanized steel platesControl systemSpraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, hour meter. All motors are normal start./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
