2022 We Electrostatic Paint Production Line/Semi Automatic Powder Coating Line

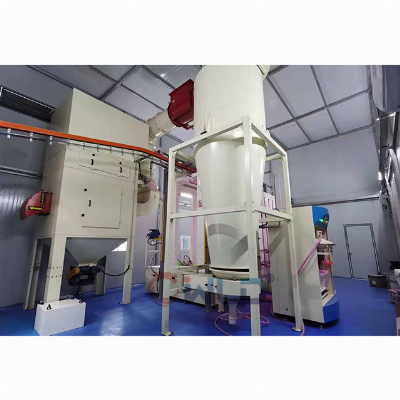

2022 WE Electrostatic Paint Production Line/semi automatic powder coating line The whole plant include powde coating booth with cyclone powder curing oven  electrostatic powder spray gun  reciprocator with automatic spray gun  powder sieving machines  1. Design Principles: Powder Coating Object: Items: metal bed frame. Max length: 2.5m; Max weight: 15kgs/piece. 2. Powder Coating Method: Automatic Powder Coating + Manual; 3. Curing Oven: Diesel Type Heating, 4. Workshop Area: 50000×40000×9000mm(L×W×H) 2. Production Procedure: Work Piece Loading → Automatic + Manual Powder Coating → Powder Curing (20 minutes, 180~200ºC) → Unloading 3. Powder Coating Conveyor Speed: 1. Conveyer Type: Suspension Conveyer Chain System 2. Production Line Working Speed: 1.5m/min (adjustable 0-4m/min), (Conveyor speed adjustable by inverter 1.5 m/min); 3. 3. Coating Curing Time: 18-20 minutes, Curing Tunnel total length 30 meters. 4. Powder Coating Plant Components (see supplied DWG) 1. Powder Coating Curing Tunnel 1 Set 2. Heat exchanger system 1 Set 3. Spraying Booth with powder sieve machine 1 Set 4. Six Filters Recycle System 2Sets 5. COLO-800D-L2-B Manual Electrostatic Powder Coating Guns with Control 2 Sets 6. Auto Electrostatic Spray Guns with Control 8 Sets 7. COLO-2000D Reciprocators 2 Sets 8. Suspension Type Conveyor Line with Drive 1 Set 9. 9. Electronic Control System 1 Set Powder Coating Production line includes: 1. Pre-treatment system : Automatical Spraying pre-treatment and dipping pre-treatment are available; 2. Drying oven : Drying oven which drying the water after pre-treatment is designed according to custmoer actual conditions. 3. Powder coating spray system: Auotmatic spray reciprocator, Maunal spray equipment and Semi- auto (Auto-spraying with manual reparing spraying) are for your choice; 4. Powder recycling system: Cyclone equipment and cartritdge filters is customized and introduced according to actual requirement by customer; 5. Curing oven : Tunnel curing oven, bridge type curing oven, Electric power heating curing oven, Gas-heating curing oven, Diesel heating curing oven, High temperature, lower temperature curing oven is available for fitting your sole factory. 6. Conveying system: Various design according to different requirement by customer on the basis of customers' workpiece and output information.   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
