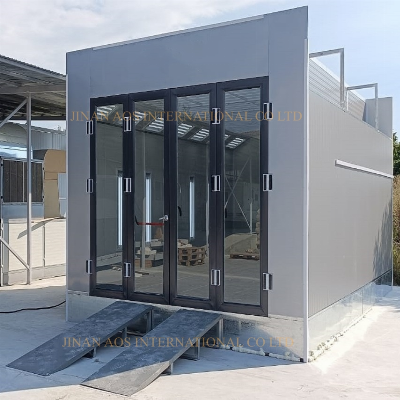

Automobile Paint Spray Oven Baking Chamber with Tempered Glass Door

  Detailed Photos   Product ParametersRoom outside size:6950*4000*3300mmRoom inside size:6850*3900*2650mmPanels:Wall panels:50mm thick antiflaming EPS panel,with 0.4mm thick steel skin, With tongue & groove style, anti-flame and heat-insulation;Roof panel: galvanized steel panels.Main door:3-fold main doors,total 3000*2500mm(W*H),with safety glass,with handles and high-pressure safety lock, rubber strips.Side door:1 unit 700*1800mm(W*H), with safety glass windows,aluminum alloy frame, with handle,safety lock and rubber strips.Basement:Total height is 300mm with grills,embossed plates, and bottom supports;Grills: 2 rows, material: 30*4mm thick;Embossed plate:2mm thick plate with supports, 3 rows on floor;Ramp:Two sets of hard strength ramps, size:1600*650*260mm;Air fans:Intake Fan:1*7.5kw;double-inlet centrifugal fans; 25000m³/h. Exhaust Fan:1*7.5kw; double-inlet centrifugal fan;25000m³/h.Cabinets:Bottom cabinet for the fans, size:2700*1100*1290mm;Upper cabinet for heating exchanger, size:1700*1100*1290mm;Electric damper:TF16-230, 16N.m;Install on the cabinet to control the inner air door.Air ducts:Exhaust air ducts:Trapezoidal duct: 1pc; Elbow 90°duct:1pc;Straight ducts:2pcs, size:700*700*900mm;Inlet air duct: upper bend air duct*1pc; All the material thickness is 0.8mm.Filtering system:Pre-filter, filtering rate>83%,can capture granules larger than 10μm;Ceiling filter,filtering rate>97%, can capture granules bigger than 4μm;Floor filter, filtering rate>70%.Heating System:  Diesel burner heating, Italy Riello G10 oil burner. Heating productivity: 100000 Kcal/h, 0.8mm thick steel heating exchanger, with anti-explosion hole for protection, max working temperature is 80ºC.Lighting system:Ceiling lights: 8units*3pcs=24pcs, powder-coated light box.  Wall lights:6units*3pcs=18pcs,vertically set,powder-coated light box.Controlling system:Intelligent control:power switch,spray/baking switch,light switch,emergency stop, electric damper button.Power total:About 12kw, voltage: 380V/50HZ/3PMore Images Show   Packaging & Shipping Certifications    /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
