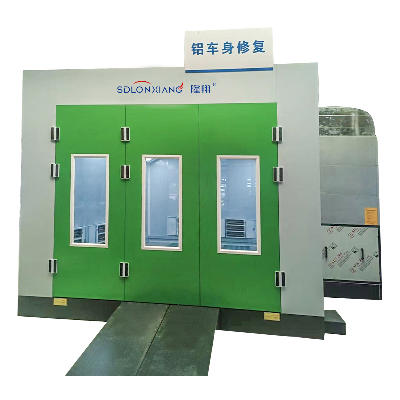

2023professional Manufacture Customized Auto Painting Booth Spray Paint Booth Oven Spray Booth

LX-E2 electric heatingOutside size7000×5350×3400mm(L×W×H)Inside size6900×3900×2650mm(L×W×H)Entrance door3 folds,3000x2600 mm(W×H), made of steel plates with "Longxiang" special protective film, beautiful and durable, square automatic lock, super large tempered glass window with aluminum alloy edging, high-quality sockets for sheet metal doors, square tube guide columns, Aluminum alloy hinge; special sealing strip for sealing tank boxEmergency door650*2000mm(W*H),equipped with handle lock.High-strength aluminum alloy steel edging door, with super large tempered glass window, matching handle lock, to prevent the pressure in the room from exceeding the normal value and damage the barn, safe and durable  Main SystemCabin systemWall panelThe wall panel is flame-retardant EPS, and the outer layer is pasted with "Longxiang" special protective film to improve anti-corrosion and rust resistance and prolong the service life. 50mm thickness,inside and outside δ0.45mm color steel plate,EPS foam, bulk density 10 kg. . The roof of the house is made of galvanized steel corrugated board with a thickness of 0.6mm, which has excellent fire prevention effect. The frame of the room is made of galvanized steel plate, and the surface is sprayed with high-temperature plastic coating, which has good weather resistance and sealing effectBasementThe platform is assembled with galvanized square tubes, the height is 280mm, the installation is standardized, and it is solid and durable; there are two rows of ground grids and three rows of anti-skid plates in the middle, which is sturdy and durable. Steel plate grid 30×4 flat steel, galvanized and anti-rust treatment, and the bottom of the checkered plate is welded to strengthen the ribs;2 sets of ramps, made of 620*2000mm (W*L) fully sealed tread plate, powder coating with anti-rust treatment.Ventilation systemInlet fan1*7.5kw turbo fans, each set air capacity:25000m³/h, speed 960rmp. High-efficiency fan has low vibration and large air volume;Outlet fan1*7.5kw turbo fans, each set air capacity:25000m³/h, speed 960rmp. High-efficiency fan has low vibration and large air volume;Cabinet setting typeThe fan box is made of spray-coated steel plate, and the fan box and the main room are of a separate structure to reduce the noise of the room; high-efficiency air supply machine; the exhaust pipe is composed of professional galvanized sheet flange air pipe, which is firm and durable; standard Equipped with 2 sections of air duct and 1 elbow, the size of each section is 700*700*910mm square.Heating system -10 groups of high-efficiency short-wave infrared lamps, 3 in each group, each 1KW-Total power:30kW.-High temperature resistant connecting wires, 6cm wide wire groove, strong heat dissipationLighting systemCeiling lights8groups*4pcs*16w LED high-efficiency and energy-saving lamp tubes, galvanized plate sprayed plastic light box shell, 3C quality certified toughened glass light-transmitting panel. Lamp horizontal, illuminance: ≥800LUXSide lightsOptionalFiltering systemPrimary filterG2 grade, filtering effect > 83%, produced by Italian technology, effectively captures dust particles larger than 10um.Ceiling filterEU5 grade high-efficiency filtration, produced by Dutch technology, can efficiently filter dust particles larger than 4um, the filtration rate is as high as ≥99%, and the built-in filter cotton bracket is convenient for replacing filter cotton.Floor filterMulti-layer glass fiber cotton, filter effect > 70%, filter dust and particles in paint mist.Control systemControl panelIntelligent control systemFunctionLighting, temperature time setting, painting, constant temperature painting, baking,emergency stop, failure indication, etcTotal power46.5 KWVoltage/frequency220-380V,50-60HZ,1-3phase   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
