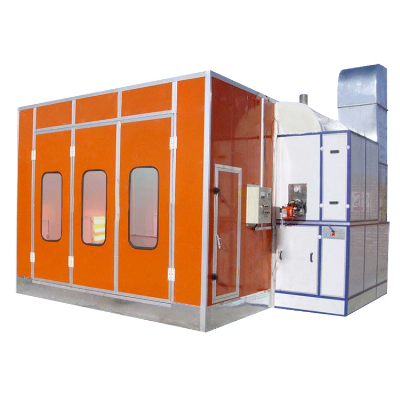

CE Electrical Heating Car Spray Booth/Paint Booth/Auto Painting Oven

  OverviewEssential detailsType:Spray BoothsPower35.5KWExternal Size:7000*5150*3250mmInternal Size6900*3900*2600mmVoltage:220V/380VDisc Dia.StandardNo Load Spee0.35m/sPlace of OriginShandong, ChinaBrand Name:MAGEWarranty:1 years warrantyName:Automotive Spray BoothHeating SystemRIELLO Brand Gas/Diesel Burner/ infared lampsColorCutomizedFiltersHigh Efficiency FilteFans kindCentrifugalLighting SystemLED   Supply Ability Supply Ability   100 Set/Sets per Month Packaging & delivery Packaging Details in wooden case Port qingdao Lead time: Quantity(sets)1 - 20>20Lead time (days)15To be negotiated  SPECIFICATIONS OF STANDARD SIZE CAR SPRAY BOOTHOuter size (mm)7000*5150*3250mmInner size (mm)6900*3900*2600mmGate (mm)2900*2570mm (W*H)Personal door (mm)700*1800mmPower35.5kw/11kwVoltage380v/3ph/50hz or customized                 Cabinet systemWall panelEPS colorful steel skin panel, 50mm thick, steel 0.426mm thick, tongue & groove style,compound construction, galvanized steel roof panel.BasementThe basement made by high quality galvanized C-shaped steel design and square tubes assembling.2 rows of grills made by flat bar and round steel,30*4mm; 3 rows of diamond plates, galvanized.Entry doorFolding door, 3pcs, size 2900mm(W)*2470mm(H), with 5mm thick tempered glass window.Personal doorSize 650mm(W)*1700mm(H), with 5mm thick tempered glass window. (There is a pressure lock on the door, which will automatically open when the indoor air pressure is too large.)RampOne pair of galvanized ramps, size 1800*650mm.       Air circulation systemIntake fanTwo sets of 3KW Double-intake centrifugal fan, air capacity 20000m³/h in total.Exhaust fanOne set of 4KW exhaust fan, air capacity 12500m³/h in total.Fan cabinetFan cabinet made by painted sections and powder-coated steel plate;the ex- haust duct made by high-quality galvanized steel, and professional flange.Roof systemBeamMade by 40*60 galvanized square pipe, with supporting; and also 40*40mm angle iron connected by rivet.2-layer structureThe plenum made by galvanized steel, powder-coated on the surface. The roof filter support frame made by 25*25 and 15*15 galvanized square tubes, powder-coated on the surface.Purfication systemIntake filterIntake filter is high quality imported filter, could capture the articles larger than 10μm.Celling filterHigh efficiency filters made in Italy, could capture the articles larger than 5μm.Floor filterThe floor filter is fiberglass filter, TSP≤14mg/m³.Heating systemElectric heating system8 groups infrared curing lamps for heating, 3 lamps/unit, 1kw/lamp, each unit have a cover,total 24 tubes. Infrared heat radiation have a feature of high penetration, efficient, no noise, pollution free etc.Diesel heating systemRIELLO G10 diesel burner with heating exchanger, made of 1.5mm stainless steel SUS304.Lighting systemCeiling light8 Units, total 32pcs, 36w LED lamp, with Light Fixtures.Control systemSwitched Control PanelButton type control box, with main switch Spraying & baking switch, lighting switch, emergency stop, Breakdown alarm, temperature timer, time accumulator etc.FAQQ. How do you control your quality?A. Our factory is ISO/ CE certified. We have our own QA and QC team. They will check on site and finished products to ensure all details to meet our highest standard and the customer's requirements.Q: May I know the Lead time?A:The lead time of our machine is 7-15 days. When you order more, we need to check the production schedule.   Q: What is the regular color? May I order a special color I like? A: The regular color is Blue, Orange, White, Red. Also we can do customize one for you.   Q: Can you supply OEM service? A: Yes, we can, some customers prefer that use their Logo, their color. And we are glad to help them open their market.   Q: What is the warranty time? A: Warranty time is 12 months. Parts have free replacement when damaged during this time./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
