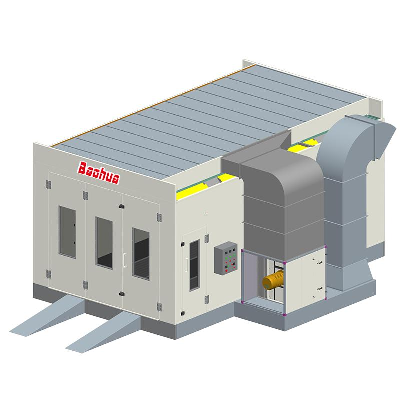

High Quality Electrical Heating Spray Booth

Product DescriptionEuropean style Car spray booth With one 7.5kw intake fansWeight:about 4800kg ,load-bearing capacity of the platform: 7000kgsvolume :about 24CBMEuropean style Car spray booth with one 7.5kw intake fans and one 7.5kw Exhaust fanWeight:about 4800kg ,load-bearing capacity of platform: 7000kgs volume :about 24CBM1. steel keel frame with 80kg crock wool : sound-proof and insulation . 2. thickening toughened glass : shock resistance , and heat resistance .3.door hinge adopt high-strength steel . The strength of the bolt is: 12 level .4.anti-rust durable and skid resistance.5. basement: 350mm(height) , inside have 40mm lead wind board. 6.steel keel frame with 80kg crock wool ,equipped with spring pressure lock 7.Siemens electrical components8.anti-explosion fan ,Large blade : Siemens high efficiency motor , German Reitz fan blade 9. with high strength steel plate with rock wool : sound-proof .Specifition Outside dimensions 7000*5560*3610mm(L*W*H) Internal Size  6900*4000*2810mm(L*W*H) Gate size 3200 * 2700MM(W*H) Safety door dimension(W*H) 700*2000mm Voltage 380V total Power 39.5kw(With one 7.5kw intake fans) 47KW(With one 7.5kw intake fans and one 7.5kw Exhaust fan) DetailsCabin System   50mm wall boards are all rock wool wall boards (good for environmental protection and thermal insulation),warranty:10 yeasWall board:adopts fire-resistance EPS(epispastics polystyrene) colorful steel insulation boards,50mm thick,compound construction,Wall slab rock wool density 85kg,Fire and high temperature resistancewall board :50mm thick metal plate gate,the view windows with aluminum alloy frame,solid structure and good appearance. Basement:constructed with galvanized steel plate and anti-corrosion square steel frame.It's configured with 2 rows of painted floor grids and 3 rows of anti-skid boards.Two ramps are made of anti-skid steel plates.Anti Circulation System   Large impeller fan, the air volume is 1/3 larger than ordinary fan, soundproof rock wool is attached around the fan, and the noise is lowAir-intake Fan:one pc 7.5kw Large impeller fan, real measured capacity is 30000m³Exhaust fan:one pc 7.5kw Large impeller fan, real measured capacity is 35000m³(European style double fan)Full load air speed:0.25-0.35m/s.Air recycling times:274times/h.Noisy:
